HIWIN LINEAR BALL SPLINE RS TYPE
FEATURES
The HIWIN Ball Spline is a rolling mechanical component specially designed for guiding linear motion. It consist of a nut, a shaft, and a retainer holding the steel balls.
With the recirculation of steel balls between the nut and the shaft, high accuracy linear motion can be achieved.
Angular contact designs are adopted for the steel balls to bear radial loads and torques.
By integrating the nut and the bearing, the ball spline can bear high loads with the compact structure.

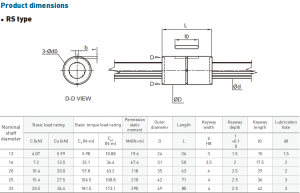

HIWIN LINEAR BALL SPLINE RS TYPE
Nominal shaft diameter | Basic load rating | Basic torque load rating | Permission static moment | Outer diameter | Length | Keyway width | Keyway depth | Keyway length | Lubrication hole | ||
C (kN) | Co (kN) | CT N-m | CN-m | MA N-m | D | L | b H8 | t +0.10 0 | l0 | d0 | |
13 | 4.07 | 5.99 | 5.98 | 10.88 | 19.6 | 24 | 36 | 3 | 1.5 | 15 | 1.5 |
16 | 7.2 | 13.5 | 32.1 | 34.4 | 67.6 | 31 | 50 | 3.5 | 2 | 17.5 | 2 |
20 | 10.4 | 20 | 57.8 | 63.2 | 118 | 35 | 63 | 4 | 2.5 | 29 | 2 |
25 | 15.4 | 27.5 | 106.5 | 108.8 | 210 | 42 | 71 | 4 | 2.5 | 36 | 3 |
32 | 20.5 | 34.4 | 181.5 | 173.1 | 290 | 49 | 80 | 4 | 2.5 | 42 | 3 |
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for HIWIN LINEAR BALL SPLINE RS TYPE, feel free to contact us online or leave a message .
WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…
We also have excellent logistics transportation system , It is very convenient for demands of global market
