Home HIWIN 15-20S1 FSH HIWIN ENDCAP RECIRCULATION BALLSCREW
63-10T4 OFSI HIWIN INTERNAL RECIRCULATION BALLSCREW
Back to products
16-16S2 FSH HIWIN ENDCAP RECIRCULATION BALLSCREW
Click to enlarge

15-20S1 FSH HIWIN ENDCAP RECIRCULATION BALLSCREW

FEATURES
Endcap recirculation type ball screw. The basic design of this return system is the same as the external recirculation type nut except that the return tube is made inside the nut body as a through hole. The balls in this design traverse the whole circuit of the ball tracks within the nut length. Therefore, a short nut with the same load capacity as the conventional design can be used.

APPLICATIONS
Adapted to high lead, Outer diameter of nut is middle, Single nut only .

INQUIRE NOW

"*" indicates required fields

Category: HIWIN Tags: 63-6T3, 63-12T3, 15-20S1
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

15-20S1 FSH HIWIN ENDCAP RECIRCULATION BALLSCREW

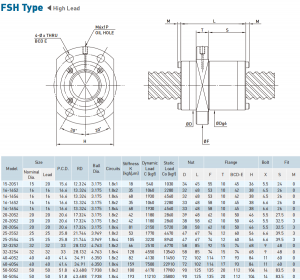

FSH TYPE:   (F)Flange mounted, (S) Single nut, (H) End cap

ModelSizeP.C.D.RDBall Dia.CircuitsNutFlangeBoltFit
NominalDia.LeadDLFTBCD-EHXSM
15-20S1152015.612.3243.1751.8×13445551045365.5240
16-16S2161616.613.3243.1751.8×23248531042384.5260
16-16S4161616.613.3243.1751.8×43248531042384.526
16-16S2161616.613.3243.1751.8×23348581045386.6260
16-16S4161616.613.3243.1751.8×4334858145386.6260
20-20Ss2202020.617.3243.1751.8×23948621050465.527.50
20-20S2202020.617.3243.1751.8×23858621050465.532.53
20-20S4202020.617.3243.1751.8×4385862150465.532.53
25-25S2252525.821.7443.9691.8×24767741260566.639.53
25-25S4252525.821.7443.9691.8×44767741260566.639.53
32-32S232323328.1324.7631.8×25885921574689480
32-32S432323328.1324.7631.8×45885741574689480
40-40S2404041.434.916.351.8×27210211417938411600
40-40S4404041.434.916.351.8×47210211417938411600
50-50S2505051.843.6887.9381.8×290125135201121041483.50
50-50S4505051.843.6887.9381.8×490125135201121041483.50

WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.

There are many types of HIWIN products,we can not upload all of them at present. If you have any demands for  15-20S1 feel free to contact us online or leave a message.
