16-5B1 FSV HIWIN RECIRCULATION BALLSCREWS

STRUCTURE
External recirculation type ballscrew,consists of the screw shaft,the ball nut, the steel balls, the return tubes and the fixing plate. The steel balls are introduced into the space between the screw shaft and the ball nut. The balls are diverted from the ball tracks and carried back by the ball guide return tube form a loop. Since the return tubes are located outside the nut body, this type is called the external recirculation type ball screw.

FEATURES
Adapted to wide kinds of shaft diameters and leads of ballscrew and Complete specifications.

INQUIRE NOW

"*" indicates required fields

Category: HIWIN Tags: 16-5B1, R80-16B3, R80-32B2, 16-4B2
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

16-5B1 FSV HIWIN RECIRCULATION BALLSCREWS

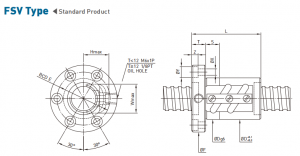

FSV TYPE:   (F)Flange end, (S)Single nut, (V) tube above the nut diameter

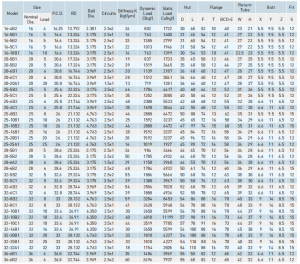

ModelSizeP.C.D.RDBall
Dia.
CircuitsStiffness K(kgf/ml)Dynamic Load c(kgf)Static Load Co(kgf)NutFlangeReturn TubeBoltFit
Nominal Dia.LeadDLFTBCD-EWHXYZs
16-4B216416.2513.7922.3812.5×2268021722304852104023215.59.55.512
16-5B116516.613.3243.1752.5×1167631400314554124127225.59.55.512
16-5B216516.613.3243.1752.5×23313852799316054124127225.55.59.59.55.55.512
16-5C116516.613.3243.1753.5×12210131946315054124127225.55.59.59.55.55.512
16-10B1161016.613.3243.1752.5×1167631399305453104122.5235.59.55.512
20-5B120520.617.3243.1752.5×1198371733354558124627255.59.55.512
20-5B220520.617.3243.1752.5×23915193465356058124627255.59.55.512
20-6B120620.816.7443.9692.5×12011392187364860124728275.59.55.512
20-6C120620.816.7443.9693.5×12815123041366660124728275.59.55.512
20-20A1202020.816.7443.9691.5×1137191281366660124728275.59.55.512
25-5B225525.622.3243.1752.5×24617044417406064125231265.59.55.512
25-5C125525.622.3243.1753.5×13512523085405064125231265.59.55.512
25-6B225625.821.7443.9692.5×24823085523426868125532286.69.55.512
25-6C125625.821.7443.9693.5×13516903844425568125532286.6116.512
25-8B22582621.1324.7632.5×24628886472508074136235315.59.55.515
25-10B125102621.1324.7632.5×12515923237456572165834296.6116.512
25-10B225102621.1324.7632.5×24628886472479774156035316.6116.515
25-16B125162621.1324.7632.5×12815923237458472165834296.6116.512
25-20B125202621.1324.7632.5×12815923237459672165834296.6116.512
25-25A125252621.1324.7631.5×11610191927459072165834296.6116.512
28-5B128528.625.3243.1752.5×1269842466444570125634286.6116.512
28-5B228528.625.3243.1752.5×25017854932446070125634286.6116.512
28-6A228628.625.3243.1751.5×22911502960445570125634286.6116.512
28-6B228628.625.3243.1752.5×24817844932506174126036296.616.515
32-5B232532.629.3243.1752.5×25518865666506076126338306.6116.512
32-5C132532.629.3243.1753.5×13913883967505076126338306.6116.512
32-6B232632.828.7443.9692.5×25625567020526878126539326.6116.512
32-6C132632.828.7443.9693.5×13918884936525578126539326.6116.512
32-8B23283328.1324.7632.5×25932848453548688167040339148.515
32-8C13283328.1324.7633.5×14124285948547088167040339148.515
32-10B1321033.426.916.352.5×13026505599547088167044379148.515
32-10B2321033.426.916.352.5×260481011199579891167344379148.515
32-10C1321033.426.916.353.5×14435197785577891167344379148.515
32-16B1321633.426.916.352.5×130265055995410088167045389148.515
32-20B132203328.1324.7632.5×133181042275410088167040339148.515
32-25B132253328.1324.7632.5×133181042275411888167040339148.515
32-32A132323328.1324.7631.5×118115425055411088167040339148.515
36-6B136636.832.7443.9692.5×13514863969555082126842326.6116.512
36-6B236636.832.7443.9692.5×26026967937556882126842326.6116.512

There are many types of HIWIN products,we can not upload all of them at present.

If you have any demands for 16-5B1, feel free to contact us online or leave a message .
