20-5B2 FDV HIWIN RECIRCULATION BALLSCREW
STRUCTURE

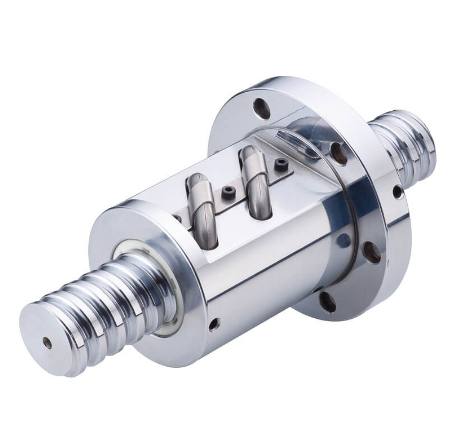

External recirculation type ballscrew,consists of the screw shaft,the ball nut, the steel balls, the return tubes and the fixing plate. The steel balls are introduced into the space between the screw shaft and the ball nut. The balls are diverted from the ball tracks and carried back by the ball guide return tube form a loop. Since the return tubes are located outside the nut body, this type is called the external recirculation type ball screw.
FEATURES
Adapted to wide kinds of shaft diameters and leads of ballscrew and Complete specifications.
Description
20-5B2 FDV HIWIN RECIRCULATION BALLSCREWS
FDV TYPE: (F)Flange end, (D)Double nut, (V) tube above the nut diameter

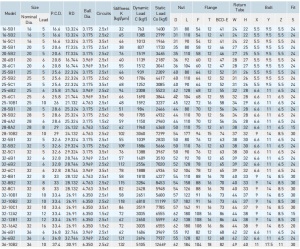

| Model | Size | P.C.D. | RD | BallDia. | Circuits | Nut | Flange | ReturnTube | Bolt | Fit | |||||||
| NominalDia. | Lead | D | L | F | T | BCD-E | W | H | X | Y | Z | S | |||||
| 16-5B1 | 16 | 5 | 16.6 | 13.324 | 3.175 | 2.5×1 | 31 | 80 | 54 | 12 | 41 | 24 | 22 | 5.5 | 9.5 | 5.5 | 24 |
| 16-5B2 | 16 | 5 | 16.6 | 13.324 | 3.175 | 2.5×2 | 31 | 110 | 54 | 12 | 41 | 24 | 22 | 5.5 | 9.5 | 5.5 | 24 |
| 16-5C1 | 16 | 5 | 16.6 | 13.324 | 3.175 | 3.5×1 | 31 | 90 | 54 | 12 | 41 | 24 | 22 | 5.5 | 9.5 | 5.5 | 24 |
| 20-5B1 | 20 | 5 | 20.6 | 17.324 | 3.175 | 2.5×1 | 35 | 80 | 58 | 12 | 46 | 27 | 25 | 5.5 | 9.5 | 5.5 | 24 |
| 20-5B2 | 20 | 5 | 20.6 | 17.324 | 3.175 | 2.5×2 | 35 | 110 | 58 | 12 | 46 | 27 | 25 | 5.5 | 9.5 | 5.5 | 24 |
| 20-6B1 | 20 | 6 | 20.8 | 16.744 | 3.969 | 2.5×1 | 36 | 92 | 60 | 12 | 47 | 28 | 27 | 5.5 | 9.5 | 5.5 | 24 |
| 20-6C1 | 20 | 6 | 20.8 | 16.744 | 3.969 | 3.5×1 | 36 | 104 | 60 | 12 | 47 | 28 | 27 | 5.5 | 9.5 | 5.5 | 24 |
| 25-5B1 | 25 | 5 | 25.6 | 22.324 | 3.175 | 2.5×1 | 40 | 80 | 64 | 12 | 52 | 31 | 26 | 5.5 | 9.5 | 5.5 | 24 |
| 25-5B2 | 25 | 5 | 25.6 | 22.324 | 3.175 | 2.5×2 | 40 | 110 | 64 | 12 | 52 | 31 | 26 | 5.5 | 9.5 | 5.5 | 24 |
| 25-5C1 | 25 | 5 | 25.6 | 22.324 | 3.175 | 3.5×1 | 40 | 90 | 64 | 12 | 52 | 31 | 26 | 5.5 | 9.5 | 5.5 | 24 |
| 25-6B2 | 25 | 6 | 25.8 | 21.744 | 3.969 | 2.5×2 | 42 | 128 | 68 | 12 | 55 | 32 | 28 | 6.6 | 11 | 6.5 | 24 |
| 25-6C1 | 25 | 6 | 25.8 | 21.744 | 3.969 | 3.5×1 | 42 | 104 | 68 | 12 | 55 | 32 | 28 | 6.6 | 11 | 6.5 | 24 |
| 25-10B1 | 25 | 10 | 26 | 21.132 | 4.763 | 2.5×1 | 45 | 122 | 72 | 16 | 58 | 34 | 29 | 6.6 | 11 | 6.5 | 24 |
| 28-5B1 | 28 | 5 | 28.6 | 25.324 | 3.175 | 2.5×1 | 44 | 80 | 70 | 12 | 56 | 34 | 28 | 6.6 | 11 | 6.5 | 24 |
| 28-5B2 | 28 | 5 | 28.6 | 25.324 | 3.175 | 2.5×2 | 44 | 110 | 70 | 12 | 56 | 34 | 28 | 6.6 | 11 | 6.5 | 24 |
| 28-6A2 | 28 | 6 | 28.6 | 25.324 | 3.175 | 1.5×2 | 44 | 110 | 70 | 12 | 56 | 34 | 28 | 6.6 | 11 | 6.5 | 24 |
| 28-8A2 | 28 | 8 | 29 | 24.132 | 4.763 | 1.5×2 | 50 | 110 | 75 | 12 | 61 | 38 | 32 | 6.6 | 11 | 6.5 | 15 |
| 28-10B2 | 28 | 10 | 29 | 24.132 | 4.763 | 2.5×2 | 54 | 177 | 94 | 15 | 74 | 37 | 32 | 9 | 14 | 8.5 | 30 |
| 32-5B1 | 32 | 5 | 32.6 | 29.324 | 3.175 | 2.5×1 | 50 | 80 | 76 | 12 | 63 | 38 | 30 | 6.6 | 11 | 6.5 | 24 |
| 32-5B2 | 32 | 5 | 32.6 | 29.324 | 3.175 | 2.5×2 | 50 | 110 | 76 | 12 | 63 | 38 | 30 | 6.6 | 11 | 6.5 | 24 |
| 32-5C1 | 32 | 5 | 32.6 | 29.324 | 3.175 | 3.5×1 | 50 | 90 | 76 | 12 | 63 | 38 | 30 | 6.6 | 11 | 6.5 | 24 |
| 32-6B1 | 32 | 6 | 32.8 | 28.744 | 3.969 | 2.5×1 | 52 | 92 | 78 | 12 | 65 | 39 | 32 | 6.6 | 11 | 6.5 | 24 |
| 32-6B2 | 32 | 6 | 32.8 | 28.744 | 3.969 | 2.5×2 | 52 | 128 | 78 | 12 | 65 | 39 | 32 | 6.6 | 11 | 6.5 | 24 |
| 32-6C1 | 32 | 6 | 32.8 | 28.744 | 3.969 | 3.5×1 | 52 | 104 | 78 | 12 | 65 | 39 | 32 | 6.6 | 11 | 6.5 | 24 |
| 32-8B1 | 32 | 8 | 33 | 28.132 | 4.763 | 2.5×1 | 54 | 110 | 88 | 16 | 70 | 40 | 33 | 9 | 14 | 8.5 | 30 |
| 32-8B2 | 32 | 8 | 33 | 28.132 | 4.763 | 2.5×2 | 54 | 158 | 88 | 16 | 70 | 40 | 33 | 9 | 14 | 8.5 | 30 |
| 32-8C1 | 32 | 8 | 33 | 28.132 | 4.763 | 3.5×1 | 54 | 126 | 88 | 16 | 70 | 40 | 33 | 9 | 14 | 8.5 | 30 |
| 32-10B1 | 32 | 10 | 33.4 | 26.91 | 6.35 | 2.5×1 | 57 | 122 | 91 | 16 | 73 | 44 | 37 | 9 | 14 | 8.5 | 30 |
| 32-10B2 | 32 | 10 | 33.4 | 26.91 | 6.35 | 2.5×2 | 57 | 182 | 91 | 16 | 73 | 44 | 37 | 9 | 14 | 8.5 | 30 |
| 32-10C1 | 32 | 10 | 33.4 | 26.91 | 6.35 | 3.5×1 | 57 | 142 | 91 | 16 | 73 | 44 | 37 | 9 | 14 | 8.5 | 30 |
| 32-12A2 | 32 | 12 | 33.4 | 26.91 | 6.35 | 1.5×2 | 62 | 180 | 108 | 16 | 86 | 44 | 38 | 9 | 14 | 8.5 | 15 |
| 32-12B1 | 32 | 12 | 33.4 | 26.91 | 6.35 | 2.5×1 | 62 | 138 | 108 | 16 | 86 | 44 | 38 | 9 | 14 | 8.5 | 20 |
| 32-16A2 | 32 | 16 | 33.4 | 26.91 | 6.35 | 1.5×2 | 62 | 180 | 108 | 16 | 86 | 44 | 38 | 9 | 14 | 8.5 | 20 |
| 36-6B1 | 36 | 6 | 36.8 | 32.744 | 3.969 | 2.5×1 | 55 | 92 | 82 | 12 | 68 | 42 | 32 | 6.6 | 11 | 6.5 | 24 |
| 36-6B2 | 36 | 6 | 36.8 | 32.744 | 3.969 | 2.5×2 | 55 | 128 | 82 | 12 | 68 | 42 | 32 | 6.6 | 11 | 6.5 | 24 |
| 36-10B2 | 36 | 10 | 37.4 | 30.91 | 6.35 | 2.5×2 | 62 | 184 | 104 | 18 | 82 | 49 | 40 | 11 | 17.5 | 1 | 30 |
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for 20-5B2, feel free to contact us online or leave a message.
WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…
We also have excellent logistics transportation system , It is very convenient for demands of global market
