25-5C1 PFDW HIWIN EXTERNAL RECIRCULATION BALLSCREW
STRUCTURE
External recirculation type ballscrew,consists of the screw shaft,the ball nut, the steel balls, the return tubes and the fixing plate. The steel balls are introduced into the space between the screw shaft and the ball nut. The balls are diverted from the ball tracks and carried back by the ball guide return tube form a loop. Since the return tubes are located outside the nut body, this type is called the external recirculation type ball screw.
FEATURES
Adapted to wide kinds of shaft diameters and leads of ballscrew and Complete specifications.
Description
25-5C1 PFDW HIWIN EXTERNAL RECIRCULATION BALLSCREW

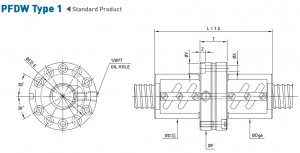

PFDW TYPE: (PF)Flange to Flange, (D)Double nut, (W) tube within the nut diameter

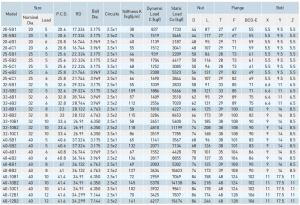

| Model | Size | P.C.D. | RD | Ball Dia | Circuits | Nut | Flange | Bolt | ||||||
| Nominal Dia. | Lead | D | L | T | F | BCD-E | X | Y | Z | |||||
| 20-5B1 | 20 | 5 | 20.6 | 17.324 | 3.175 | 2.5×1 | 44 | 87 | 27 | 67 | 55 | 5.5 | 9.5 | 5.5 |
| 20-5B2 | 20 | 5 | 20.6 | 17.324 | 3.175 | 2.5×2 | 44 | 117 | 27 | 67 | 55 | 5.5 | 9.5 | 5.5 |
| 20-6B1 | 20 | 6 | 20.8 | 16.744 | 3.969 | 2.5×1 | 48 | 95 | 29 | 71 | 59 | 5.5 | 9.5 | 5.5 |
| 20-6C1 | 20 | 6 | 20.8 | 16.744 | 3.969 | 3.5×1 | 48 | 107 | 29 | 71 | 59 | 5.5 | 9.5 | 5.5 |
| 25-5B1 | 25 | 5 | 25.6 | 22.324 | 3.175 | 2.5×1 | 50 | 86 | 28 | 73 | 61 | 5.5 | 9.5 | 5.5 |
| 25-5B2 | 25 | 5 | 25.6 | 22.324 | 3.175 | 2.5×2 | 50 | 116 | 28 | 73 | 61 | 5.5 | 9.5 | 5.5 |
| 25-5C1 | 25 | 5 | 25.6 | 22.324 | 3.175 | 3.5×1 | 50 | 96 | 28 | 73 | 61 | 5.5 | 9.5 | 5.5 |
| 25-6B2 | 25 | 6 | 25.8 | 21.744 | 3.969 | 2.5×2 | 56 | 131 | 29 | 82 | 69 | 5.5 | 9.5 | 5.5 |
| 25-6C1 | 25 | 6 | 25.8 | 21.744 | 3.969 | 3.5×1 | 56 | 107 | 29 | 82 | 69 | 5.5 | 9.5 | 5.5 |
| 32-5B1 | 32 | 5 | 32.6 | 29.324 | 3.175 | 2.5×1 | 58 | 91 | 33 | 85 | 71 | 6.6 | 11 | 6.5 |
| 32-5B2 | 32 | 5 | 32.6 | 29.324 | 3.175 | 2.5×2 | 58 | 121 | 33 | 85 | 71 | 6.6 | 11 | 6.5 |
| 32-6B1 | 32 | 6 | 32.8 | 28.744 | 3.969 | 2.5×1 | 62 | 95 | 29 | 89 | 75 | 6.6 | 11 | 6.5 |
| 32-6B2 | 32 | 6 | 32.8 | 28.744 | 3.969 | 2.5×2 | 62 | 131 | 29 | 89 | 75 | 6.6 | 11 | 6.5 |
| 32-8B1 | 32 | 8 | 33 | 28.132 | 4.763 | 2.5×1 | 66 | 125 | 39 | 100 | 82 | 9 | 14 | 8.5 |
| 32-8B2 | 32 | 8 | 33 | 28.132 | 4.763 | 2.5×2 | 66 | 173 | 39 | 100 | 82 | 9 | 14 | 8.5 |
| 32-10B1 | 32 | 10 | 33.4 | 26.91 | 6.35 | 2.5×1 | 74 | 185 | 38 | 108 | 90 | 9 | 14 | 8.5 |
| 32-10B2 | 32 | 10 | 33.4 | 26.91 | 6.35 | 2.5×2 | 74 | 208 | 38 | 108 | 90 | 9 | 14 | 8.5 |
| 32-10c1 | 32 | 10 | 33.4 | 26.91 | 6.35 | 3.5×1 | 74 | 168 | 38 | 108 | 90 | 9 | 14 | 8.5 |
| 40-5B1 | 40 | 5 | 40.6 | 37.324 | 3.175 | 2.5×1 | 68 | 96 | 38 | 101 | 83 | 9 | 14 | 8.5 |
| 40-5B2 | 40 | 5 | 40.6 | 37.324 | 3.175 | 2.5×2 | 68 | 126 | 38 | 101 | 83 | 9 | 14 | 8.5 |
| 40-6B1 | 40 | 6 | 40.8 | 36.744 | 3.969 | 2.5×1 | 70 | 101 | 35 | 104 | 86 | 9 | 14 | 8.5 |
| 40-6B2 | 40 | 6 | 40.8 | 36.744 | 3.969 | 2.5×2 | 70 | 137 | 35 | 104 | 86 | 9 | 14 | 8.5 |
| 40-8B1 | 40 | 8 | 41 | 36.132 | 4.763 | 2.5×1 | 74 | 125 | 39 | 108 | 90 | 9 | 14 | 8.5 |
| 40-8B2 | 40 | 8 | 41 | 36.132 | 4.763 | 2.5×2 | 74 | 173 | 39 | 108 | 90 | 9 | 14 | 8.5 |
| 40-10B1 | 40 | 10 | 41.4 | 34.91 | 6.35 | 2.5×1 | 84 | 158 | 48 | 124 | 102 | 11 | 17.5 | 11 |
| 40-10B2 | 40 | 10 | 41.4 | 34.91 | 6.35 | 2.5×2 | 84 | 218 | 48 | 124 | 102 | 11 | 17.5 | 11 |
| 40-10C1 | 40 | 10 | 41.4 | 34.91 | 6.35 | 3.5×1 | 84 | 178 | 48 | 124 | 102 | 11 | 17.5 | 11 |
| 40-12B1 | 40 | 12 | 41.6 | 34.299 | 7.144 | 2.5×1 | 86 | 174 | 48 | 128 | 106 | 11 | 17.5 | 11 |
| 40-12B2 | 40 | 12 | 41.6 | 34.299 | 7.144 | 2.5×2 | 86 | 246 | 48 | 128 | 106 | 11 | 17.5 | 11 |
There are many types of HIWIN products,we can not upload all of them at present. If you have any demands for 25-5C1, feel free to contact us online or leave a message.
