50-12T4 FSI HIWIN RECIRCULATION BALLSCREW
STRUCTURE
Internal recirculation type ballscrew, consists of the screw spindle, the ball nut, the steel balls and the ball return caps. The steel balls make only one revolution around the screw spindle. The circuit is closed by a ball return cap in the nut allowing the balls to cross over adjacent ball tracks. Since the ball return caps are located inside the nut body, this is called the internal recirculation type ballscrew.
FEATURES
Adapted to normal leads and Outer diameter of nut is small.
Description
50-12T4 FSI HIWIN INTERNAL RECIRCULATION BALLSCREW
FSI TYPE: (F)Flange end, (S)Single nut, (I) Internal Recirculation Cap

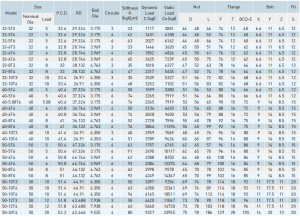

| Model | Size | P.C.D. | RD | Ball Dia. | Circuits | Nut | Flange | Bolt | Fit | |||||||
| NominalDia. | Lead | D | L | F | BCD-E | X | Y | Z | S | |||||||
| 32-5T3 | 32 | 5 | 32.6 | 29.324 | 3.175 | 3 | 44 | 48 | 46 | 74 | 12 | 60 | 6.6 | 1 | 6.5 | 12 |
| 32-5T4 | 32 | 5 | 32.6 | 29.324 | 3.175 | 4 | 44 | 48 | 53 | 74 | 12 | 60 | 6.6 | 11 | 6.5 | 12 |
| 32-5T6 | 32 | 5 | 32.6 | 29.324 | 3.175 | 6 | 44 | 48 | 66 | 74 | 12 | 60 | 6.6 | 11 | 6.5 | 12 |
| 32-6T3 | 32 | 6 | 32.8 | 28.744 | 3.969 | 3 | 45 | 50 | 51 | 76 | 12 | 62 | 6.6 | 11 | 6.5 | 12 |
| 32-6T4 | 32 | 6 | 32.8 | 28.744 | 3.969 | 4 | 45 | 50 | 61 | 76 | 12 | 62 | 6.6 | 11 | 6.5 | 12 |
| 32-6T6 | 32 | 6 | 32.8 | 28.744 | 3.969 | 6 | 45 | 50 | 75 | 76 | 12 | 62 | 6.6 | 1 | 6.5 | 12 |
| 32-8T3 | 32 | 8 | 33 | 28.132 | 4.763 | 3 | 47 | 52 | 63 | 78 | 16 | 64 | 6.6 | 11 | 6.5 | 12 |
| 32-8T4 | 32 | 8 | 33 | 28.132 | 4.763 | 4 | 47 | 52 | 74 | 78 | 16 | 64 | 6.6 | 11 | 6.5 | 12 |
| 32-10T3 | 32 | 10 | 33.4 | 26.91 | 6.35 | 3 | 51 | 56 | 72 | 82 | 16 | 68 | 6.6 | 11 | 6.5 | 12 |
| 32-10T4 | 32 | 10 | 33.4 | 26.91 | 6.35 | 4 | 51 | 56 | 83 | 82 | 16 | 68 | 6.6 | 11 | 6.5 | 12 |
| 40-5T4 | 40 | 5 | 40.6 | 37.324 | 3.175 | 4 | 51 | 54 | 53 | 80 | 16 | 66 | 6.6 | 11 | 6.5 | 12 |
| 40-5T6 | 40 | 5 | 40.6 | 37.324 | 3.175 | 6 | 51 | 54 | 66 | 80 | 16 | 66 | 6.6 | 11 | 6.5 | 12 |
| 40-5.08T6 | 40 | 5.08 | 40.6 | 37.324 | 3.175 | 6 | 53 | 56 | 65 | 90 | 15 | 72 | 9 | 14 | 8.5 | 15 |
| 40-6T4 | 40 | 6 | 40.8 | 36.744 | 3.969 | 4 | 53 | 56 | 65 | 88 | 16 | 72 | 9 | 14 | 8.5 | 15 |
| 40-6T6 | 40 | 6 | 40.8 | 36.744 | 3.969 | 6 | 53 | 56 | 79 | 88 | 16 | 72 | 9 | 14 | 8.5 | 15 |
| 40-8T4 | 40 | 8 | 41 | 36.132 | 4.763 | 4 | 55 | 60 | 78 | 92 | 16 | 75 | 9 | 14 | 8.5 | 15 |
| 40-8T6 | 40 | 8 | 41 | 36.132 | 4.763 | 6 | 55 | 60 | 99 | 92 | 16 | 75 | 9 | 14 | 8.5 | 15 |
| 40-10T3 | 40 | 10 | 41.4 | 34.91 | 6.35 | 3 | 60 | 65 | 76 | 96 | 16 | 80 | 9 | 14 | 8.5 | 15 |
| 40-10T4 | 40 | 10 | 41.4 | 34.91 | 6.35 | 4 | 60 | 65 | 87 | 96 | 16 | 80 | 9 | 14 | 8.5 | 15 |
| 50-5T4 | 50 | 5 | 50.6 | 47.324 | 3.175 | 4 | 62 | 65 | 57 | 96 | 16 | 80 | 9 | 14 | 8.5 | 15 |
| 50-5T6 | 50 | 5 | 50.6 | 47.324 | 3.175 | 6 | 62 | 65 | 70 | 96 | 16 | 80 | 9 | 14 | 8.5 | 15 |
| 50-6T4 | 50 | 6 | 50.8 | 46.744 | 3.969 | 4 | 64 | 68 | 65 | 100 | 16 | 84 | 9 | 14 | 8.5 | 15 |
| 50-6T6 | 50 | 6 | 50.8 | 46.744 | 3.969 | 6 | 64 | 68 | 79 | 100 | 16 | 8 | 9 | 14 | 8.5 | 15 |
| 50-8T4 | 50 | 8 | 51 | 46.132 | 4.763 | 4 | 65 | 70 | 78 | 102 | 16 | 85 | 9 | 14 | 8.5 | 15 |
| 50-8T6 | 50 | 8 | 51 | 46.132 | 4.763 | 6 | 65 | 70 | 99 | 102 | 16 | 85 | 9 | 14 | 8.5 | 15 |
| 50-10T3 | 50 | 10 | 51.4 | 44.91 | 6.35 | 3 | 69 | 74 | 78 | 114 | 18 | 92 | 11 | 17.5 | 11 | 20 |
| 50-10T4 | 50 | 10 | 51.4 | 44.91 | 6.35 | 4 | 69 | 74 | 89 | 114 | 18 | 92 | 11 | 17.5 | 11 | 20 |
| 50-10T6 | 50 | 10 | 51.4 | 44.91 | 6.35 | 6 | 69 | 74 | 112 | 114 | 18 | 92 | 11 | 17.5 | 11 | 20 |
| 50-12T3 | 50 | 12 | 51.8 | 43.688 | 7.938 | 3 | 73 | 78 | 90 | 118 | 18 | 96 | 11 | 17.5 | 11 | 20 |
| 50-12T4 | 50 | 12 | 51.8 | 43.688 | 7.938 | 4 | 73 | 78 | 103 | 118 | 18 | 96 | 11 | 17.5 | 11 | 20 |
| 50-20T4 | 50 | 20 | 52.2 | 42.466 | 9.525 | 4 | 75 | 78 | 186 | 129 | 28 | 105 | 14 | 20 | 13 | 30 |
