80-16B2 FSW HIWIN RECIRCULATION BALLSCREWS
STRUCTURE
External recirculation type ballscrew,consists of the screw shaft,the ball nut, the steel balls, the return tubes and the fixing plate. The steel balls are introduced into the space between the screw shaft and the ball nut. The balls are diverted from the ball tracks and carried back by the ball guide return tube form a loop. Since the return tubes are located outside the nut body, this type is called the external recirculation type ball screw.
FEATURES
Adapted to wide kinds of shaft diameters and leads of ballscrew and Complete specifications.
Description
80-16B2 FSW HIWIN RECIRCULATION BALLSCREWS
FSW TYPE: (F)Flange end, (S)Single nut, (W) tube within the nut diameter

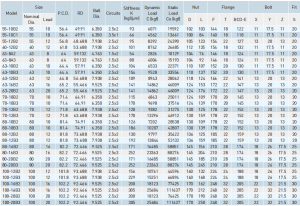

| Model | Size | P.C.D. | RD | BalDia. | Circuits | Nut | Flange | Bolt | Fit | ||||||
| NominalDia. | Lead | D | L | F | T | BCD-E | X | Y | z | s | |||||
| 55-10B2 | 55 | 10 | 56.4 | 49.91 | 6.35 | 2.5×2 | 102 | 103 | 144 | 18 | 122 | 11 | 17.5 | 11 | 20 |
| 55-10C1 | 55 | 10 | 56.4 | 49.91 | 6.35 | 3.5×1 | 100 | 84 | 140 | 18 | 118 | 11 | 17.5 | 11 | 20 |
| 55-12B2 | 55 | 12 | 56.8 | 48.688 | 7.938 | 2.5×2 | 105 | 123 | 154 | 22 | 127 | 13 | 20 | 13 | 20 |
| 60-12B2 | 60 | 12 | 61.8 | 53.688 | 7.938 | 2.5×2 | 112 | 135 | 154 | 18 | 132 | 11 | 17.5 | 1 | 20 |
| 63-8A2 | 63 | 8 | 64 | 59.132 | 4.763 | 1.5×2 | 104 | 76 | 146 | 18 | 124 | 11 | 17.5 | 11 | 20 |
| 63-8A3 | 63 | 8 | 64 | 59.132 | 4.763 | 1.5×3 | 104 | 92 | 146 | 18 | 124 | 11 | 17.5 | 11 | 20 |
| 63-10B2 | 63 | 10 | 64.4 | 57.91 | 6.35 | 2.5×2 | 110 | 107 | 152 | 20 | 130 | 11 | 17.5 | 11 | 20 |
| 63-10B3 | 63 | 10 | 64.4 | 57.91 | 6.35 | 2.5×3 | 110 | 137 | 152 | 20 | 130 | 11 | 17.5 | 11 | 20 |
| 63-12B2 | 63 | 12 | 64.8 | 56.688 | 7.938 | 2.5×2 | 118 | 124 | 166 | 22 | 141 | 13 | 20 | 13 | 20 |
| 63-16B2 | 63 | 16 | 65.2 | 55.466 | 9.525 | 2.5×2 | 124 | 153 | 172 | 22 | 147 | 13 | 20 | 13 | 20 |
| 63-20B2 | 63 | 20 | 65.2 | 55.466 | 9.525 | 2.5×2 | 124 | 176 | 172 | 22 | 147 | 13 | 20 | 13 | 20 |
| 70-10B2 | 70 | 10 | 71.4 | 64.91 | 6.35 | 2.5×2 | 124 | 109 | 170 | 20 | 145 | 13 | 20 | 13 | 20 |
| 70-10B3 | 70 | 10 | 71.4 | 64.91 | 6.35 | 2.5×3 | 124 | 139 | 170 | 20 | 145 | 13 | 20 | 13 | 20 |
| 70-12B2 | 70 | 12 | 71.8 | 63.688 | 7.938 | 2.5×2 | 130 | 125 | 178 | 22 | 152 | 13 | 20 | 13 | 20 |
| 70-12B3 | 70 | 12 | 71.8 | 63.688 | 7.938 | 2.5×3 | 130 | 159 | 178 | 22 | 152 | 13 | 20 | 13 | 20 |
| 80-10B2 | 80 | 10 | 81.4 | 74.91 | 6.35 | 2.5×2 | 130 | 109 | 178 | 22 | 152 | 13 | 20 | 13 | 20 |
| 80-10B3 | 80 | 10 | 81.4 | 74.91 | 6.35 | 2.5×3 | 130 | 139 | 178 | 22 | 152 | 13 | 20 | 13 | 20 |
| 80-12B2 | 80 | 12 | 81.8 | 73.688 | 7.938 | 2.5×2 | 136 | 125 | 185 | 22 | 159 | 13 | 20 | 13 | 20 |
| 80-12B3 | 80 | 12 | 81.8 | 73.688 | 7.938 | 2.5×3 | 136 | 159 | 185 | 22 | 159 | 13 | 20 | 13 | 20 |
| 80-16B2 | 80 | 16 | 82.2 | 72.466 | 9.525 | 2.5×2 | 145 | 156 | 210 | 28 | 174 | 18 | 26 | 17.5 | 25 |
| 80-16B3 | 80 | 16 | 82.2 | 72.466 | 9.525 | 2.5×3 | 145 | 204 | 210 | 28 | 174 | 18 | 26 | 17.5 | 25 |
| 80-20B2 | 80 | 20 | 82.2 | 72.466 | 9.525 | 2.5×2 | 145 | 185 | 210 | 28 | 174 | 18 | 26 | 17.5 | 25 |
| 80-20B3 | 80 | 20 | 82.2 | 72.466 | 9.525 | 2.5×3 | 145 | 245 | 210 | 28 | 174 | 18 | 26 | 17.5 | 25 |
| 100-12B2 | 100 | 12 | 101.8 | 93.688 | 7.938 | 2.5×2 | 160 | 132 | 224 | 24 | 188 | 18 | 26 | 17.5 | 25 |
| 100-12B3 | 100 | 12 | 101.8 | 93.688 | 7.938 | 2.5×3 | 160 | 168 | 224 | 24 | 188 | 18 | 26 | 17.5 | 25 |
| 100-16B2 | 100 | 16 | 102.2 | 92.466 | 9.525 | 2.5×2 | 170 | 162 | 248 | 32 | 205 | 22 | 32 | 21.5 | 30 |
| 100-16B3 | 100 | 16 | 102.2 | 92.466 | 9.525 | 2.5×3 | 170 | 212 | 248 | 32 | 205 | 22 | 32 | 21.5 | 30 |
| 100-20B2 | 100 | 20 | 102.2 | 92.466 | 9.525 | 2.5×2 | 170 | 190 | 248 | 32 | 205 | 22 | 32 | 21.5 | 30 |
| 100-20B3 | 100 | 20 | 102.2 | 92.466 | 9.525 | 2.5×3 | 170 | 250 | 248 | 32 | 205 | 22 | 32 | 21.5 | 30 |
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for 80-16B2, feel free to contact us online or leave a message.
