CF3WBR IKO Cam Followers and Roller Followers
In this bearing, very thin needle rollers are assembled in the outer ring. This product is designed as a compact type with a small external diameter of the outer ring for the stud diameter. The product is used in electronic parts, OA devices, miniature index devices, etc

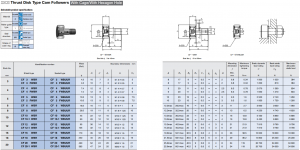

CF3WBR IKO Cam Followers and Roller Followers
Studdia. men | Identification number | Mass (Ret) g | D | c | Boundary dimensiona mm | |||
SHeldtype | Sealed type | |||||||
d\ | G | <n | ||||||
CF 3 WBR | CF 3 WBUUR | 4.3 | 10 | 7 | 3 | M 3X05 | 5 | |
♦ | CF 3 FWBR | CF 3 FWBUUR | 4.3 | 10 | 7 | 3 | M 3X05 | 5 |
CF 4 WBR | CF 4 WBUUR | 7.4 | 12 | 8 | 4 | M 4X0.7 | 6 | |
♦ | CF 4 FWBR | CF 4 FWBUUR | 7.4 | 12 | 8 | 4 | M 4X0.7 | 6 |
£ | CF 5 WBR | CF 5 WBUUR | 1Q3 | 13 | 9 | 5 | M 5X0B | 7S |
CF 5 FWBR | CF 5 FWBUUR | 1Q3 | 13 | 9 | 5 | M 5X08 | 7S | |
6 | CF 6 WBR | CF 6 WBUUR | las | 16 | 11 | 6 | M 6X1 | 8 |
8 | CF 8 WBR | CF 8 WBUUR | 2as | 19 | 11 | 8 | M 8X125 | 10 |
10 | CF 10 WBR | CF10 WBUUR | 45 | 22 | 12 | 10 | M10X125 | 12 |
CF 10-1 WBR | CF10-1 WBUUR | 60 | 26 | 12 | 10 | M10X12S | 12 | |
CF 12 WBR | CF12 WBUUR | 95 | 30 | 14 | 12 | M12X15 | 13 | |
CF 12-1 WBR | CF 12-1 WBUUR | 105 | 32 | 14 | 12 | M12X15 | 13 | |
16 | CF 16 WBR | CF16 WBUUR | 170 | 35 | 18 | 16 | M16X15 | 17 |
18 | CF 18 WBR | CF18 WBUUR | 250 | 40 | 20 | 18 | M18X15 | 19 |
CF20 WBR | CF20 WBUUR | 460 | 52 | 24 | 20 | M20X15 | 21 | |
CF20-1 WBR | CF20-1 WBUUR | 385 | 47 | 24 | 20 | M20X15 | 21 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of IKO products.Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…We also have excellent logistics transportation system , It is very convenient for demands of global market .Own large spot inventory .There are many types of IKO products,we can not upload all of them at present,If you have any demands for CF3WBR,feel free to contact us or email us.
