CGH30CA HIWIN LINEAR GUIDEWAY RAIL
The HIWIN linear guideways of the CG series with O-arrangement of the ball tracks guarantee high torque loading capacity, especially in the M, direction. The modified track geometry ensures high load ratings. The new flexible end seal automatically adjusts itself to the rail contour and ensures a high, permanent dust protection. To protect the end seal against mechanical damage, the CG series is equipped with a sheet metal scraper in front of the end seal as standard.
Description
CGH30CA HIWIN LINEAR GUIDEWAY RAIL

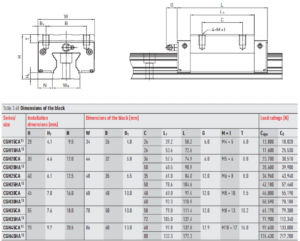

| Series/size | Installation dimensions [mm] | Dimensions of the block [mm] | Load ratings[N] | |||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | G | Mxl | T | C | C | |
| CGH15CA | 28 | 4.1 | 9.5 | 34 | 26 | 4 | 26 | 39.2 | 58.2 | 6 | M4×5 | 6 | 13,800 | 18,020 |
| CGH15HA | 26 | 53.6 | 72.6 | 17,600 | 25,530 | |||||||||
| CGH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 52.5 | 74.9 | 6 | M5x6 | 8 | 23,700 | 30,510 |
| CGH20HA | 50 | 68.5 | 90.9 | 28,600 | 39,900 | |||||||||
| CGH25CA | 40 | 6.1 | 12.5 | 48 | 35 | 6.5 | 35 | 61 | 84 | 12 | M6x8 | 8 | 34,960 | 43,940 |
| CGH25HA | 50 | 78.6 | 104.6 | 42,180 | 57,460 | |||||||||
| CGH30CA | 45 | 7 | 16 | 60 | 40 | 10 | 40 | 69 | 97.4 | 12 | M8 × 10 | 9.5 | 46,000 | 55,190 |
| CGH30HA | 60 | 92.3 | 118.9 | 58,590 | 78,180 | |||||||||
| CGH35CA | 55 | 7.6 | 18 | 70 | 50 | 10 | 50 | 79 | 111.4 | 12 | M8×13 | 10.2 | 61,170 | 79,300 |
| CGH35HA | 72 | 105 | 137.4 | 77,900 | 112,340 | |||||||||
| CGH45CA | 70 | 9.7 | 20.5 | 86 | 60 | 13 | 60 | 97.8 | 137.8 | 12.9 | M10×17 | 16 | 97,630 | 133,000 |
| CGH45HA | 80 | 132.3 | 172.3 | 124,430 | 217,200 | |||||||||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for CGH30CA , feel free contact us online or leave a message .
