CRWG6-200 IKO Anti-Creep Cage Crossed Roller Way
Anti-Creep Cage Crossed Roller Way is the product with a cage creep proof function using a
rack and pinion mechanism originated from Crossed Roller Way, featuring smooth linear motion
with super high accuracy.
Description

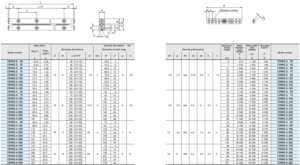

| Model number | Mass(Way(1)g | (Ref.)Rollercage(2)g | A | BounH | dary dimensionsL(nxF) | E | Dw | NomineDimensioR | al dimenon of rolZ | sionser cagep | mme |
| CRWG2-30 | 6.53 | 0.38 | 12 | 6 | 30(115) | 7.5 | 2 | 25.6 | 4 | 4 | 2.8 |
| CRWG2-45 | 9.53 | 0.72 | 45(215) | 41.6 | 8 | ||||||
| CRWG2-60 | 12.5 | 0.88 | 60 (315) | 49.6 | 10 | ||||||
| CRWG2-75 | 15.5 | 1.22 | 75(415) | 65.6 | 14 | ||||||
| CRWG2-90 | 18.5 | 1.39 | 90(515) | 73.6 | 16 | ||||||
| CRWG2-105 | 21.5 | 1.72 | 105 (615) | 89.6 | 20 | ||||||
| CRWG 2-120 | 24.5 | 1.89 | 120(715) | 97.6 | 22 | ||||||
| CRWG 2-135 | 27.5 | 2.22 | 135(815) | 113.6 | 26 | ||||||
| CRWG 2-150 | 30.5 | 2.39 | 150 (915) | 121.6 | 28 | ||||||
| CRWG 3- 50 | 22.8 | 1.69 | 18 | 8 | 50(125) | 12.5 | 3 | 42 | 6 | 5 | 3.5 |
| CRWG 3- 75 | 33.3 | 2.71 | 75(225) | 62 | 10 | ||||||
| CRWG 3-100 | 43.8 | 3.72 | 100 (325) | 82 | 14 | ||||||
| CRWG 3-125 | 54.4 | 4.74 | 125(425) | 102 | 18 | ||||||
| CRWG 3-150 | 64.9 | 5.75 | 150 (525) | 122 | 22 | ||||||
| CRWG 3-175 | 75.4 | 6.77 | 175(625) | 142 | 26 | ||||||
| CRWG 3-200 | 85.9 | 7.78 | 200(725) | 162 | 30 | ||||||
| CRWG 3-225 | 96.4 | 8.8 | 225(825) | 182 | 34 | ||||||
| CRWG 3-250 | 107 | 9.81 | 250(925) | 202 | 38 | ||||||
| CRWG4- 80 | 59.6 | 9.7 | 22 | 11 | 80 (140) | 20 | 4 | 73 | 8 | 7 | 5 |
| CRWG 4-120 | 88 | 12 | 120 (240) | 101 | 12 | ||||||
| CRWG 4-160 | 116 | 14.3 | 160 (340) | 129 | 16 | ||||||
| CRWG 4-200 | 145 | 16.7 | 200(440) | 157 | 20 | ||||||
| CRWG 4-240 | 173 | 20.1 | 240(540) | 199 | 26 | ||||||
| CRWG 4-280 | 201 | 22.5 | 280(640) | 227 | 30 | ||||||
| CRWG 4-320 | 230 | 24.8 | 320(740) | 255 | 34 | ||||||
| CRWG 6-100 | 147 | 12 | 31 | 15 | 100 (150) | 25 | 6 | 75 | 6 | 9 | 6 |
| CRWG 6-150 | 216 | 22.6 | 150 (250) | 129 | 12 | ||||||
| CRWG 6-200 | 285 | 29.7 | 200(350) | 165 | 16 | ||||||
| CRWG 6-250 | 353 | 36.8 | 250(450) | 201 | 20 | ||||||
| CRWG 6-300 | 422 | 43.9 | 300(550) | 237 | 24 | ||||||
| CRWG 6-350 | 491 | 51 | 350(650) | 273 | 28 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of IKO products.Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…We also have excellent logistics transportation system , It is very convenient for demands of global market .Own large spot inventory .There are many types of IKO products,we can not upload all of them at present,If you have any demands for CRWG6-200,feel free to contact us online or leave a message.
