EGW35CA HIWIN LINEAR GUIDEWAY RAIL BLOCK
The HIWIN linear guideways of the EG series with four ball tracks have a low installation height, making them ideally suited to applications with a low installation space. Despite this, the EG series has the same properties as the HG series – good loading capacity, low displacement forces and high efficiency. The ball retainers prevent the balls from falling out when the block is pulled off the rail during assembly.
EGW35CA HIWIN LINEAR GUIDEWAY RAIL BLOCK

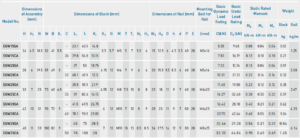

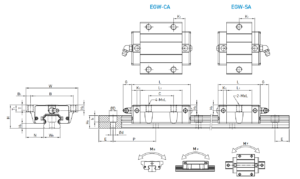

Model | Dimensions of Assembly(mm) | Dimensions of Block(mm) | Dimensions of Rail(mm) | Weight | |||||||||||
H | H1 | N | W | L | G | M | T | WR | HR | D | h | d | Block(kg) | Rail(kg/m) | |
EGW15SA | 24 | 4.5 | 18.5 | 52 | 40.1 | 5.7 | M5 | 5 | 15 | 12.5 | 6 | 4.5 | 3.5 | 0.12 | 1.25 |
EGW15CA | 24 | 4.5 | 18.5 | 52 | 56.8 | 5.7 | M5 | 5 | 15 | 12.5 | 6 | 4.5 | 3.5 | 0.21 | 1.25 |
EGW20SA | 28 | 6 | 19.5 | 59 | 50 | 12 | M6 | 7 | 20 | 15.5 | 9.5 | 8.5 | 6 | 0.19 | 2.08 |
EGW20CA | 28 | 6 | 19.5 | 59 | 69.1 | 12 | M6 | 7 | 20 | 15.5 | 9.5 | 8.5 | 6 | 0.32 | 2.08 |
EGW25SA | 33 | 7 | 25 | 73 | 59.1 | 12 | M8 | 7.5 | 23 | 18 | 11 | 9 | 7 | 0.35 | 2.67 |
EGW25CA | 33 | 7 | 25 | 73 | 82.6 | 12 | M8 | 7.5 | 23 | 18 | 11 | 9 | 7 | 0.59 | 2.67 |
EGW30SA | 42 | 10 | 31 | 90 | 69.5 | 12 | M10 | 7 | 28 | 23 | 11 | 9 | 7 | 0.62 | 4.35 |
EGW30CA | 42 | 10 | 31 | 90 | 98.1 | 12 | M10 | 7 | 28 | 23 | 11 | 9 | 7 | 1.04 | 4.35 |
EGW35SA | 48 | 11 | 33 | 100 | 75 | 12 | M10 | 10 | 34 | 27.5 | 14 | 12 | 9 | 0.84 | 6.14 |
EGW35CA | 48 | 11 | 33 | 100 | 108 | 12 | M10 | 10 | 34 | 27.5 | 14 | 12 | 9 | 1.45 | 6.14 |
There are many types of HIWIN products,we can not upload all of them at present.Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
We also have excellent logistics transportation system , It is very convenient for demands of global market.
If you have any demands for EGW35CA, feel free to contact us online or leave a message.
