HGW15CB HIWIN LINEAR GUIDEWAY RAIL BLOCK
The HI WIN linear guideways of the HG series with four ball tracks are designed for high loads and rigidities. Due to the 45° arrangement of the ball tracks the HG series can equal* take loads from all directions. Low displacement forces and a high efficiency are further features of the HG series. The ball retainers prevent the balls from falling out when the block is pulled off the rail during assembly.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with Circular-arc qroove and structure optimization. It features equal load ratings in the radial. reverse radial and lateral directions. and self-alianing to absorb installation-error. Thus, HIWIN HG series linear quideways can achieve a long life with high speed, high accuracy and smooth linear motion.
Description
HGW15CB HIWIN LINEAR GUIDEWAY RAIL BLOCK

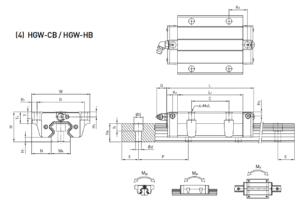

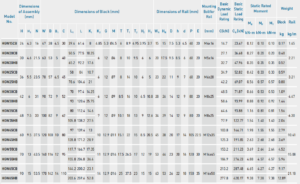

| Model | Dimensions of Assembly(mm) | Dimensions of Block(mm) | Dimensions of Rail(mm) | Weight | ||||||||||||
| H | H1 | N | W | B | L | G | WR | HR | D | h | d | P | E | Block(kg) | Rail(kg/m) | |
| HGW15CB | 24 | 4.3 | 16 | 47 | 38 | 61.4 | 5.3 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | 0.17 | 1.45 |
| HGW20CB | 30 | 4.6 | 21.5 | 63 | 53 | 77.5 | 12 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | 0.4 | 2.21 |
| HGW20HB | 30 | 4.6 | 21.5 | 63 | 53 | 92.2 | 12 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | 0.52 | 2.21 |
| HGW25CB | 36 | 5.5 | 23.5 | 70 | 57 | 84 | 12 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | 0.59 | 3.21 |
| HGW25HB | 36 | 5.5 | 23.5 | 70 | 57 | 104.6 | 12 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | 0.8 | 3.21 |
| HGW30CB | 42 | 6 | 31 | 90 | 72 | 97.4 | 12 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | 1.09 | 4.47 |
| HGW30HB | 42 | 6 | 31 | 90 | 72 | 120.4 | 12 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | 1.44 | 4.47 |
| HGW35CB | 48 | 7.5 | 33 | 100 | 82 | 112.4 | 12 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | 1.56 | 6.3 |
| HGW35HB | 48 | 7.5 | 33 | 100 | 82 | 138.2 | 12 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | 2.06 | 6.3 |
| HGW45CB | 60 | 9.5 | 37.5 | 120 | 100 | 139.4 | 12.9 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | 2.79 | 10.41 |
| HGW45HB | 60 | 9.5 | 37.5 | 120 | 100 | 171.2 | 12.9 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | 3.69 | 10.41 |
| HGW55CB | 70 | 13 | 43.5 | 140 | 116 | 166.7 | 12.9 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | 4.52 | 15.08 |
| HGW55HB | 70 | 13 | 43.5 | 140 | 116 | 204.8 | 12.9 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | 5.96 | 15.08 |
| HGW65CB | 90 | 15 | 53.5 | 170 | 142 | 200.2 | 12.9 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | 9.17 | 21.18 |
| HGW65HB | 90 | 15 | 53.5 | 170 | 142 | 259.6 | 12.9 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | 12.89 | 21.18 |
There are many types of HIWIN products,we can not upload all of them at present.Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect… WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
If you have any demands for HGW15CB, feel free to contact us online or leave a message .
