HIWIN BLOCK BEARING SUPPORT UNIT BF25
Bearings BK/BF:
To provide a simple bearing arrangement for ballscrews, HIWIN offers ready-to-install flange bearing and pillow block units in fixed and supported bearing versions.
• BK Fixed bearing to absorb axial and radial forces
• BF Supported bearing to absorb radial forces
Description
HIWIN BLOCK BEARING SUPPORT UNIT BF25

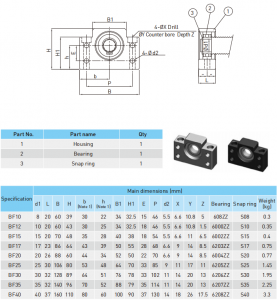

| Specification | Main dimensions (mm) | ||||||||||||||||
| d1 | L | B | H | b [Note 1] | h(Note 1) | B1 | H1 | E | P | d2 | X | Y | Z | Bearing | Snap ring | Weight(kg) | |
| BF10 | 8 | 20 | 60 | 39 | 30 | 22 | 34 | 32.5 | 15 | 46 | 5.5 | 6.6 | 10.8 | 5 | 608ZZ | S08 | 0.3 |
| BF12 | 10 | 20 | 60 | 43 | 30 | 25 | 34 | 32.5 | 18 | 46 | 5.5 | 6.6 | 10.8 | 1.5 | 6000ZZ | S10 | 0.35 |
| BF15 | 15 | 20 | 70 | 48 | 35 | 28 | 40 | 38 | 18 | 54 | 5.5 | 6.6 | 11 | 6.5 | 6002ZZ | S15 | 0.4 |
| BF17 | 17 | 23 | 86 | 64 | 43 | 39 | 50 | 55 | 28 | 68 | 6.6 | 9 | 14 | 8.5 | 6203ZZ | S17 | 0.75 |
| BF20 | 20 | 26 | 88 | 60 | 44 | 34 | 52 | 50 | 22 | 70 | 6.6 | 9 | 14 | 8.5 | 6004ZZ | S20 | 0.77 |
| BF25 | 25 | 30 | 106 | 80 | 53 | 48 | 64 | 70 | 33 | 85 | 9 | 11 | 17 | 11 | 6205ZZ | S25 | 1.45 |
| BF30 | 30 | 32 | 128 | 89 | 64 | 51 | 76 | 78 | 33 | 102 | 11 | 14 | 20 | 13 | 6206ZZ | S30 | 1.95 |
| BF35 | 35 | 32 | 140 | 96 | 70 | 52 | 88 | 79 | 35 | 114 | 11 | 14 | 20 | 13 | 6207ZZ | S35 | 2.25 |
| BF40 | 40 | 37 | 160 | 110 | 80 | 60 | 100 | 90 | 37 | 130 | 14 | 18 | 26 | 17.5 | 6208ZZ | S40 | 3.3 |
If you have any demands for HIWIN BLOCK BEARING SUPPORT BF25, feel free to contact us online or leave a message .
There are many types of HIWIN products,we can not upload all of them at present.
WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws, HIWIN CROSSED ROLLER BEARING, HIWIN Cam Follower , ect…
We also have excellent logistics transportation system , It is very convenient for demands of global market
