HIWIN BLOCK BEARING SUPPORT UNIT EF12

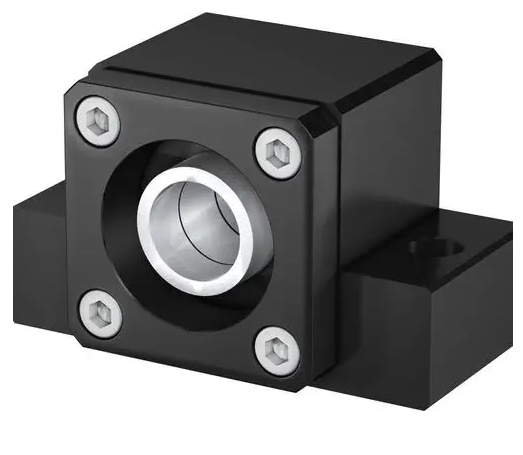

Bearings EK/EF: To provide a simple bearing arrangement for ballscrews,
HIWIN offers ready-to-install flange bearing and pillow block units in fixed and supported bearing versions.
• EK Fixed bearing to absorb axial and radial forces
• EF Supported bearing to absorb radial forces
Description
HIWIN BLOCK BEARING SUPPORT UNIT EF12

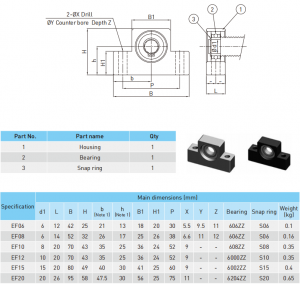

| Specification | Main dimensions (mm) | ||||||||||||||
| d1 | L | B | H | b (Note1) | h[Note 1] | B1 | H1 | P | X | Y | Z | Bearing | Snap ring | Weight(kg） | |
| EF06 | 6 | 12 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 1 | 606ZZ | S06 | 0.1 |
| EF08 | 6 | 14 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 | 606ZZ | S06 | 0.16 |
| EF10 | 8 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | = | 608ZZ | S08 | 0.35 | |
| EF12 | 10 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | – | 6000Zz | s10 | 0.35 | |
| EF15 | 15 | 20 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 9 | – | = | 6002ZZ | S15 | 0.4 |
| EF20 | 20 | 26 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | – | 6204ZZ | S20 | 0.65 | |
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for HIWIN BLOCK BEARING SUPPORT EF12, feel free to contact us online or leave a message .
WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws, HIWIN CROSSED ROLLER BEARING, HIWIN Cam Follower , ect…
We also have excellent logistics transportation system , It is very convenient for demands of global market
