HIWIN BLOCK BEARING SUPPORT UNIT EK05
Bearings EK/EF: To provide a simple bearing arrangement for ballscrews, HIWIN offers ready-to-install flange bearing and pillow block units in fixed and supported bearing versions.
• EK Fixed bearing to absorb axial and radial forces
• EF Supported bearing to absorb radial forces
Description
HIWIN BLOCK BEARING SUPPORT UNIT EK05

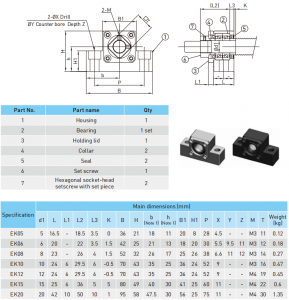

| Specification | Main dimensions (mm) | ||||||||||||||||||
| d1 | L | L1 | L2 | L3 | K | B | H | b [Note1] | h [Note1] | B1 | H1 | P | X | Y | z | M | T | Weight(kg) | |
| EK05 | 5 | 16.5 | – | 18.5 | 3.5 | 0 | 36 | 21 | 18 | 11 | 20 | 8 | 28 | 4.5 | – | M3 | 11 | 0.12 | |
| EK06 | 6 | 20 | – | 22 | 3.5 | 1.5 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 | M3 | 12 | 0.18 |
| EK08 | 8 | 23 | – | 26 | 4 | 1.5 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 | M3 | 14 | 0.27 |
| EK10 | 10 | 24 | 6 | 29.5 | 6 | -0.5 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | M3 | 16 | 0.47 | ||
| EK12 | 12 | 24 | 6 | 29.5 | 6 | -0.5 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | – | – | M4 | 19 | 0.45 |
| EK15 | 15 | 25 | 6 | 36 | 5 | 5 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 11 | – | – | M4 | 22 | 0.6 |
| EK20 | 20 | 42 | 10 | 50 | 10 | 1 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | – | – | M4 | 30 | 1.35 |
