HIWIN CROSSED ROLLER BEARING CRBA-09016 TYPE
Bearings CRB:
HIWIN crossed roller bearings are characterised by high rigidity, very high concentricity and high torque capacity in all directions.
These features make them ideal for use in industrial automation systems, robots, machine tools, precision rotary tables, measuring machines and medical devices, amongst other things.
• CRBA:
Consists of an inner ring and a two-part outer ring and is suitable for inner ring rotation.
FEATURES
Patented design features high loading capacity
High rigidity
Accepts loads from all directions at the same time
Smooth rotation
Compact, space saving
Easy installation and adjustment
Various bearing types and sizes to accommodate your requirements
Customized designs available
Description

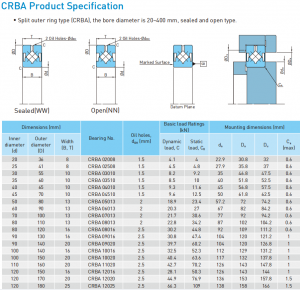

HIWIN CROSSED ROLLER BEARING CRBA 09016 TYPE
| Dimensions (mm) | Bearing No. | Oil holes doH (mm) | Basic load Ratings[kN] | Mounting dimensions (mm) | ||||||
| Inner diameter (d) | Outer diameter (D) | Width (B,T) | Dynamic load,C | Static load,C | d。 | D。 | D. | C(max) | ||
| 20 | 36 | 8 | CRBA 02008 | 1.5 | 4.1 | 4 | 22.9 | 30.8 | 32 | 0.6 |
| 25 | 41 | 8 | CRBA 02508 | 1.5 | 4.5 | 4.8 | 27.9 | 35.8 | 37 | 0.6 |
| 30 | 55 | 10 | CRBA 03010 | 1.5 | 8.2 | 9.2 | 35 | 46.8 | 47.5 | 0.6 |
| 35 | 60 | 10 | CRBA03510 | 1.5 | 8.5 | 10 | 40 | 51.8 | 52.5 | 0.6 |
| 40 | 65 | 10 | CRBA 04010 | 1.5 | 9.3 | 11.6 | 45 | 56.8 | 57.5 | 0.6 |
| 45 | 70 | 10 | CRBA 04510 | 1.5 | 9.6 | 12.5 | 50 | 61.8 | 62.5 | 0.6 |
| 50 | 80 | 13 | CRBA 05013 | 2 | 18.9 | 23.4 | 57.2 | 72 | 74.2 | 0.6 |
| 60 | 90 | 13 | CRBA 06013 | 2 | 20.3 | 27 | 67 | 82 | 84.2 | 0.6 |
| 70 | 100 | 13 | CRBA 07013 | 2 | 21.7 | 30.6 | 77 | 92 | 94.2 | 0.6 |
| 80 | 110 | 13 | CRBA 08013 | 2 | 22.8 | 34.2 | 87 | 102 | 104.2 | 0.6 |
| 80 | 120 | 16 | CRBA 08016 | 2.5 | 30.2 | 44.8 | 92 | 109 | 111.2 | 0.6 |
| 90 | 130 | 16 | CRBA 09016 | 2.5 | 30.8 | 47.4 | 104 | 120 | 121.2 | 1 |
| 90 | 140 | 20 | CRBA 09020 | 2.5 | 39.7 | 60.2 | 104 | 120 | 126.8 | 1 |
| 100 | 140 | 16 | CRBA 10016 | 2.5 | 32.5 | 52.3 | 112 | 129 | 131.2 | 1 |
| 100 | 150 | 20 | CRBA 10020 | 2.5 | 40.4 | 63.6 | 117 | 132 | 137.8 | 1 |
| 110 | 160 | 20 | CRBA 11020 | 2.5 | 42.7 | 70.2 | 126 | 143 | 147.8 | 1 |
| 120 | 150 | 16 | CRBA 12016 | 2.5 | 28.1 | 50.3 | 126 | 143 | 144 | 1 |
| 120 | 170 | 20 | CRBA 12020 | 2.5 | 44.9 | 76.9 | 136 | 153 | 157.8 | 1.5 |
| 120 | 180 | 25 | CRBA 12025 | 2.5 | 66.3 | 109 | 138 | 158 | 166 | 1.5 |
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for HIWIN CROSSED ROLLER BEARING CRBA 09016 TYPE, feel free to contact us online or leave a message .
WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws, HIWIN CROSSED ROLLER BEARING, HIWIN Cam Follower , ect…
We also have excellent logistics transportation system , It is very convenient for demands of global market
