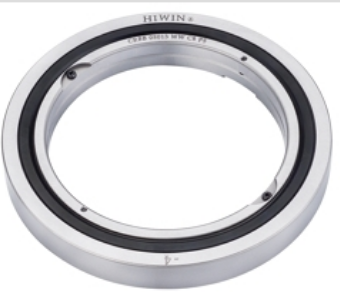

HIWIN CROSSED ROLLER BEARING CRBB-03010 TYPE
Bearings CRB:
HIWIN crossed roller bearings are characterised by high rigidity, very high concentricity and high torque capacity in all directions.
These features make them ideal for use in industrial automation systems, robots, machine tools, precision rotary tables, measuring machines and medical devices, amongst other things.
• CRBB: Consists of an outer ring and a two-part inner ring and is suitable for outer ring rotation.
FEATURES
Patented design features high loading capacity
High rigidity
Accepts loads from all directions at the same time
Smooth rotation
Compact, space saving
Easy installation and adjustment
Various bearing types and sizes to accommodate your requirements
Customized designs available
Description
HIWIN CROSSED ROLLER BEARING CRBB 03010 TYPE
| Dimensions (mm) | Bearing No. | Oil holes,doh(mm) | Basic load Ratings[kN] | Mounting dimensions (mm) | ||||||
| Inner diameter[d] | Outer diameter (D) | Width(B,T) | Dynamic load,C | Static load,Co | d a | d u | D a | C a(max) | ||
| 30 | 55 | 10 | CRBB 03010 | 1.5 | 8.2 | 9.2 | 35 | 34.4 | 46.8 | 0.6 |
| 35 | 60 | 10 | CRBB 03510 | 1.5 | 8.5 | 10 | 40 | 39.4 | 51.8 | 0.6 |
| 40 | 65 | 10 | CRBB 04010 | 1.5 | 9.3 | 11.6 | 45 | 44.4 | 56.8 | 0.6 |
| 45 | 70 | 1 | CRBB 04510 | 1.5 | 9.6 | 12.5 | 50 | 49.4 | 61.8 | 0.6 |
| 50 | 80 | 13 | CRBB 05013 | 2 | 18.9 | 23.4 | 57.2 | 55.6 | 72 | 0.6 |
| 60 | 90 | 13 | CRBB 06013 | 2 | 20.3 | 27 | 67 | 65.6 | 82 | 0.6 |
| 70 | 100 | 13 | CRBB 07013 | 2 | 21.7 | 30.6 | 77 | 75.6 | 92 | 0.6 |
| 80 | 110 | 13 | CRBB 08013 | 2 | 22.8 | 34.2 | 87 | 85.6 | 102 | 0.6 |
| 80 | 120 | 16 | CRBB 08016 | 2.5 | 30.2 | 44.8 | 92 | 89 | 109 | 0.6 |
| 90 | 130 | 16 | CRBB 09016 | 2.5 | 30.8 | 47.4 | 104 | 99 | 120 | 1 |
| 90 | 140 | 20 | CRBB 09020 | 2.5 | 39.7 | 60.2 | 104 | 101 | 120 | 1 |
| 100 | 140 | 16 | CRBB 10016 | 2.5 | 32.5 | 52.3 | 112 | 109 | 129 | 1 |
| 100 | 150 | 20 | CRBB 10020 | 2.5 | 40.4 | 63.6 | 117 | 111 | 132 | 1 |
| 110 | 160 | 20 | CRBB 11020 | 2.5 | 42.7 | 70.2 | 126 | 121 | 143 | 1 |
| 120 | 150 | 16 | CRBB 12016 | 2.5 | 28.1 | 50.3 | 126 | 126 | 143 | 1 |
| 120 | 170 | 20 | CRBB 12020 | 2.5 | 44.9 | 76.9 | 136 | 131 | 153 | 1.5 |
| 120 | 180 | 25 | CRBB 12025 | 2.5 | 66.3 | 109 | 138 | 134 | 158 | 1.5 |
| 130 | 190 | 25 | CRBB 13025 | 2.5 | 67.8 | 114.8 | 148 | 144 | 168 | 1.5 |
| 140 | 200 | 25 | CRBB 14025 | 2.5 | 69.5 | 120.6 | 161 | 154 | 178 | 1.5 |
| 150 | 210 | 25 | CRBB 15025 | 2.5 | 73.1 | 131.9 | 168 | 164 | 188 | 1.5 |
| 150 | 230 | 30 | CRBB 15030 | 3 | 114.3 | 187.3 | 181 | 168.5 | 198 | 1.5 |
| 160 | 220 | 25 | CRBB 16025 | 2.5 | 74.5 | 137.7 | 181 | 174 | 198 | 1.5 |
| 170 | 220 | 20 | CRBB 17020 | 2.5 | 52.3 | 103.6 | 183 | 181 | 203 | 1.5 |
| 180 | 240 | 25 | CRBB 18025 | 2.5 | 79.6 | 154.8 | 198 | 194 | 218 | 1.5 |
| 190 | 240 | 25 | CRBB 19025 | 2.5 | 54.5 | 113.6 | 203 | 203 | 223 | 1 |
| 200 | 260 | 25 | CRBB 20025 | 2.5 | 82.3 | 166.4 | 218 | 214 | 238 | 2 |
| 200 | 280 | 30 | CRBB 20030 | 3 | 122.9 | 242 | 231 | 218.5 | 248 | 2 |
| 200 | 295 | 35 | CRBB 20035 | 3 | 155.9 | 277.4 | 238 | 222.5 | 258 | 2 |
| 220 | 280 | 25 | CRBB 22025 | 2.5 | 86.3 | 183.5 | 237 | 234 | 259 | 2 |
| 240 | 300 | 25 | CRBB 24025 | 2.5 | 90.5 | 200.6 | 257 | 254 | 279 | 2 |
| 250 | 310 | 25 | CRBB 25025 | 2.5 | 91.6 | 206.4 | 267 | 264 | 289 | 2 |
| 250 | 330 | 30 | CRBB 25030 | 3 | 142 | 286.2 | 280 | 268.5 | 299 | 2 |
| 250 | 355 | 40 | CRBB 25040 | 4 | 207 | 391.8 | 289 | 275 | 311 | 2 |
| 300 | 360 | 25 | CRBB 30025 | 2.5 | 100.6 | 246.5 | 317 | 314 | 339 | 2.5 |
| 300 | 395 | 35 | CRBB 30035 | 3 | 191.6 | 407.8 | 337 | 322.5 | 359 | 2.5 |
| 300 | 405 | 40 | CRBB 30040 | 4 | 227 | 465.8 | 339 | 325 | 361 | 2.5 |
| 400 | 480 | 35 | CRBB 40035 | 3 | 219.4 | 523.9 | 426 | 415.5 | 447 | 2.5 |
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for HIWIN CROSSED ROLLER BEARING CRBB 03010 TYPE, feel free to contact us online or leave a message .
