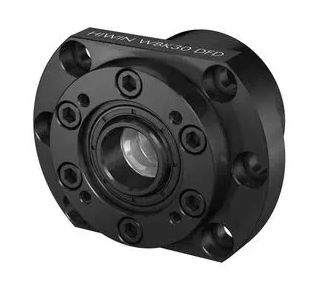

HIWIN FLANGE BEARING SUPPORT UNIT WBK40DFF SERIES
Bearings WBK: Flange bearing unit, specifically for use with heavy-duty ballscrews in various versions subject to loading.
HIWIN FLANGE BEARING SUPPORT UNIT WBK40DFF SERIES

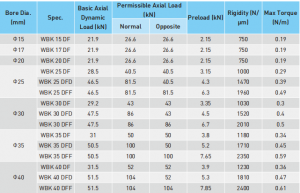

Bore Dia.(mm) | Spec. | Basic Axial Dynamic Load (kN) | Permissible Axial Load(kN) | Preload (kN) | Rigidity (N/um) | Max Torque[N/m] | |
Normal | Opposite | ||||||
φ15 | WBK 15 DF | 21.9 | 26.6 | 26.6 | 2.15 | 750 | 0.19 |
φ17 | WBK17 DF | 21.9 | 26.6 | 26.6 | 2.15 | 750 | 0.19 |
φ20 | WBK20 DF | 21.9 | 26.6 | 26.6 | 2.15 | 750 | 0.19 |
φ25 | WBK25 DF | 28.5 | 40.5 | 40.5 | 3.15 | 1000 | 0.29 |
WBK25 DFD | 46.5 | 81.5 | 40.5 | 4.3 | 1470 | 0.39 | |
WBK25 DFF | 46.5 | 81.5 | 81.5 | 6.3 | 1960 | 0.49 | |
φ30 | WBK 30 DF | 29.2 | 43 | 43 | 3.35 | 1030 | 0.3 |
WBK 30 DFD | 47.5 | 86 | 43 | 4.5 | 1520 | 0.4 | |
WBK 30 DFF | 47.5 | 86 | 86 | 6.7 | 2010 | 0.5 | |
φ35 | WBK35 DF | 31 | 50 | 50 | 3.8 | 1180 | 0.34 |
WBK 35 DFD | 50.5 | 100 | 50 | 5.2 | 1710 | 0.45 | |
WBK 35 DFF | 50.5 | 100 | 100 | 7.65 | 2350 | 0.59 | |
①40 | WBK40 DF | 31.5 | 52 | 52 | 3.9 | 1230 | 0.36 |
WBK 40 DFD | 51.5 | 104 | 52 | 5.3 | 1810 | 0.47 | |
WBK40 DFF | 51.5 | 104 | 104 | 7.85 | 2400 | 0.61 |
If you have any demands for HIWIN CROSSED ROLLER BEARING WBK40DFF, feel free to contact us online or leave a message .
There are many types of HIWIN products,we can not upload all of them at present.
WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws, HIWIN CROSSED ROLLER BEARING, HIWIN Cam Follower , ect…
We also have excellent logistics transportation system , It is very convenient for demands of global market
