Japan LWFS33SL IKO Linear Guide Rail Block
IKO Linear Way F is a linear motion rolling guide, featuring a wide track rail along which a highly rigid
slide unit performs endless linear motion. A large number of large diameter steel balls are
incorporated in two rows and in four point contact with the raceways, so stable high accuracy and
rigidity can be obtained in operations even under fluctuating loads with changing direction and
magnitude or complex loads. Being a wide rail type, it can support a large moment load acting
around the axial direction, and it is also suitable for single row rail arrangement.

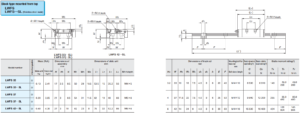

Model number | MassSlide unitkg | (Ref.)Track railkg/m | DimH | ensiorssemkmmH | ns ofolyN | W2 | Ws | Wa | DimeL1 | nsionsmrL2 | of slidemL3 | unitL4 | M×depth |
LWFS33 | 0.13 | 2.41 | 17 | 2.5 | 8.5 | 50 | 29 | 10.5 | 53.5 | 15 | 35.3 | 56 | M4×5 |
LWFS33SL | |||||||||||||
LWFS37 | 0.2 | 3.05 | 21 | 3 | 8.5 | 54 | 31 | 11.5 | 62 | 19 | 40 | 66 | M5×6 |
LWFS37SL | |||||||||||||
LWFS42SL | 0.4 | 4.3 | 27 | 3 | 10 | 62 | 23 | 8 | 75 | 32 | 52.2 | 86 | M6×6 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of IKO products.Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…We also have excellent logistics transportation system , It is very convenient for demands of global market .Own large spot inventory .There are many types of IKO products,we can not upload all of them at present,If you have any demands for LWFS33SL,feel free to contact us online or leave a message.
