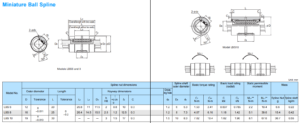

LBS6 THK Miniature Ball Spline
The most compact type with a straight cylindrical spline nut. When transmitting a torque, a
key is driven into the body. The outer surface of
the spline nut is provided with anti-carbonation
treatment.
LBS6 THK Miniature Ball Spline .
Model No. | Spline nut dimensions | Spline shaft outer diameter | Basic torque rating | Basic load rating (radial) | Static permissible moment | Mass | |||||||||||||||||
Outer diameter | Length | l_2 | La | d2 | Keyway dimensions | Greasing hole do | |||||||||||||||||
D | Tolerance | L | Tolerance | b H8 | t +0.05 0 | fo | C | Do | ds | Ct N-m | Cot N-m | C kN | Co kN | N-m | MK2** N-m | Spline Nut g | Spline shaft kg/m | ||||||
LBS 6 | 12 | 0 -0.011 | 20 | 0 -0.2 | 20.8 | 11 | 11.5 | 2 | 0.8 | 10 | 0.3 | 1.2 | 6 | 5.3 | 1.53 | 2.41 | 0.637 | 0.785 | 2.2 | 19.4 | 6.6 | 0.22 | |
LBS 8 | 16 | 25 | 26.4 | 14.5 | 15.5 | 2.5 | 1.2 | 125 | 0.3 | 1.2 | 8 | 7.3 | 4.07 | 6.16 | 1.18 | 1.42 | 5.1 | 39.6 | 15.4 | 0.42 | |||
LBS 10 | 19 | 0 -0.013 | 30 | — | — | — | 3 | 1.5 | 17 | 0.3 | 1.5 | 10 | 8.3 | 7.02 | 10.4 | 1.62 | 1.96 | 8.1 | 67.6 | 36.7 | 0.55 |
