LF10 THK Ball Spline Original

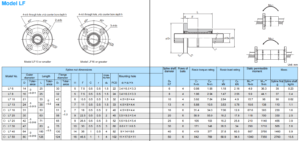

Flanged Type Ball Spline Model LF Specifi cation Table⇒A3-80

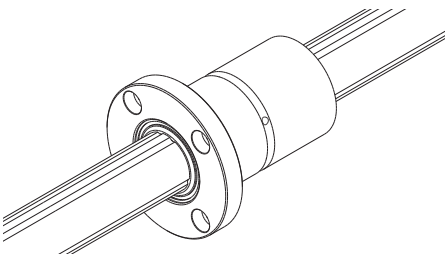

The spline nut can be attached to the housing
via the fl ange, making assembly simple.
It is optimal for locations where the housing
may be deformed if a keyway is machined on its
surface, and where the housing width is small.
Description
LF10 THK Ball Spline Original
| Model No. | Spline nut dimensions | Spfine shaft dimeter | Rows of balls | Basic to<que rating | Basic load rating | Static ponryssijte moment | Mass | |||||||||||||||||
| Outer diameter | Length | Flange diameter | H | F | C | r | Gre» hghote | PCD | Mounting hole diXdzXh | D» h7 | ||||||||||||||
| D | Toler ance | L | Toler ance | Di | Toler ance | d。 | Ct N-m | C・ N-m | C kN | Co kN | ML N-m | 瞄* N-m | Spline Nut g | Spfine shaft kg/m | ||||||||||
| LF6 | 14 | 0 -0.011 | 25 | 0 -0.2 | 30 | 0 -0.2 | 5 | 7.5 | 0.5 | 0.5 | 1.5 | 22 | 3.4 X 6.5 X 3.3 | 6 | 4 | 0.98 | 1.96 | 1.18 | 2.16 | 4.9 | 36.3 | 35 | 0.23 | |
| LF8 | 16 | 25 | 32 | 5 | 7.5 | 0.5 | 0.5 | 1.5 | 24 | 3.4X6.5X3.3 | 8 | 4 | 1.96 | 2.94 | 1.47 | 255 | 5.9 | 44.1 | 37 | 0.4 | ||||
| LF10 | 21 | 0 -0.013 | 33 | 42 | 6 | 10.5 | 0.5 | 0.5 | 1.5 | 32 | 4.5X8X4.4 | 10 | 4 | 3.92 | 7.84 | 284 | 4.9 | 15.7 | 98 | 90 | 0.62 | |||
| LF13 | 24 | 36 | 44 | 7 | 11 | 0.5 | 0.5 | 1.5 | 33 | 4.5X8X4.4 | 13 | 4 | 5.88 | 10.8 | 353 | 5.78 | 19.6 | 138 | 110 | 1.1 | ||||
| LF16 | 31 | 50 | 51 | 7 | 18 | 0.5 | 0.5 | 2 | 40 | 4.5 X 8X4.4 | 16 | 6 | 31.4 | 34.3 | 7.06 | 12.6 | 67.6 | 393 | 230 | 1.6 | ||||
| LF20 | 35 | 0 -0.016 | 63 | 58 | 9 | 22.5 | 0.5 | 0.5 | 2 | 45 | 5.5X9.5X5.4 | 20 | 6 | 56.9 | 55.9 | 10.2 | 17.8 | 118 | 700 | 330 | 2.5 | |||
| LF 25 | 42 | 71 | 0 -0.3 | 65 | 9 | 26.5 | 0.5 | 0.5 | 3 | 52 | 5.5 X 9.5 X 5.4 | 25 | 6 | 105 | 103 | 15.2 | 25.8 | 210 | 1140 | 455 | 3.9 | |||
| LF30 | 47 | 80 | 75 | 10 | 30 | 0.5 | 0.5 | 3 | 60 | 6.6X11X6.5 | 30 | 6 | 171 | 148 | 20.5 | 34 | 290 | 1710 | 565 | 5.6 | ||||
| LF 40 | 64 | 0 -0.019 | 100 | 100 | 14 | 36 | 1 | 0.5 | 4 | 82 | 9X14X8.6 | 40 | 6 | 419 | 377 | 37.8 | 60.5 | 687 | 3760 | 1460 | 9.9 | |||
| LF 50 | 80 | 125 | 124 | 16 | 46.5 | 1 | 1 | 4 | 102 | 11X17.5X11 | 50 | 6 | 842 | 769 | 60.9 | 94.5 | 1340 | 7350 | 2760 | 15.5 | ||||
