Home HIWIN MGNR05R HIWIN LINEAR GUIDEWAY RAIL
MGN15C-0 HIWIN LINEAR GUIDEWAY RAIL
Back to products
MGN09C-0 HIWIN LINEAR GUIDEWAY RAIL
Click to enlarge

MGNR05R HIWIN LINEAR GUIDEWAY RAIL

For MG linear guideways, a distinction is made between interchangeable and non-interchangeable models. The dimensions of both models are the same. The main difference is that the block and rail in the interchangeable models can be freely interchanged. Block and rail can therefore be ordered separately and fitted by the customer. Given their stringent dimensional accuracy check, the interchangeable modules are a good choice for customers who do not use rails in pairs on one axis. The order codes include the dimensions, model accuracy class, preload etc.

INQUIRE NOW

"*" indicates required fields

Category: HIWIN Tags: MGN12C-0, MGN15C-0, MGNR05R
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

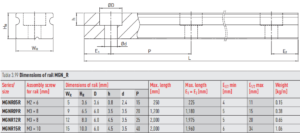

MGNR05R HIWIN LINEAR GUIDEWAY RAIL

Series/sizeScrews for rail mmDimensions of the rail mmMax. length mmMax.length
E1=E2 mm
E minE maxWeight
kg/m
WrHrDhdP
MGNR05RM2×653.63.60.82.4152502254110.15
MGNR09RM3×896.563.53.5201,2001,1805150.38
MGNR12RM3×812864.53.5252,0001,9755200.65
MGNR15RM3×10151064.53.5402,0001,9606341.06

There are many types of HIWIN products,we can not upload all of them at present.

Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.

If you have any demands for MGNR05R, feel free contact us online or leave a message .There are many types of HIWIN products,we can not upload all of them at present.

We also have excellent logistics transportation system , It is very convenient for demands of global market .

Product Inquire Now

"*" indicates required fields

Shipping & Delivery

Free Delivery

Orders from 10,000 USD will be shipped free of charge within Southeast Asia!

Delivery Time: Ready for Shipping within 24h

We try hard to make as much orders as possible ready for shipping within 24 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. The independent official seal for excellence in shipment always shows you, have fast we are currently working (make your order ready for pick-up by our logistics partner).

Delivery areas:

We deliver to all over the world , for example:Germany, Austria, Switzerland and Belgium, Bulgaria, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Sweden, Switzerland, Slovakia, Slovenia, Spain, Czech Republic, Hungary, USA. Please find information about delivery costs below.

Returns

If a product does not meet your expectation for any reason, you can return the product without ifs and buts. To make it even more easy for you, we recommend to use the attached return form and the return stickers free of charge within 30 days of receipt. Or contact our online service anytime , we will try to solve problem ASAP .
