MGW9H-O HIWIN LINEAR GUIDEWAY RAIL
For MGN and MGW linear guideways, a distinction is made between interchangeable and non-interchangeable models. The dimensions of both models are the same. The main difference is that the block and rail in the interchangeable models can be freely interchanged. Block and rail can therefore be ordered separately and fitted by the customer. Given their stringent dimensional accuracy check, the interchangeable modules are a good choice for customers who do not use rails in pairs on one axis. The order codes include the dimensions, model, accuracy class, preload etc.
Description
MGW9H-O HIWIN LINEAR GUIDEWAY RAIL

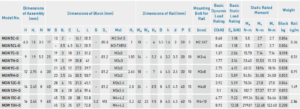

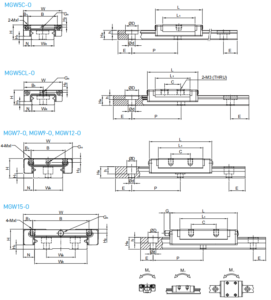

| Model | Dimensions of Assembly(mm) | Dimensions of Block(mm) | Dimensions of Rail(mm) | Weight | |||||||||||
| H | H1 | N | W | B | B1 | C | L | WR | WB | HR | D | h | Block(kg) | Rail(kg/m) | |
| MGW5C-O | 6.5 | 1.5 | 3.5 | 17 | 13 | 2 | – | 20.5 | 10 | – | 4 | 5.5 | 1.6 | 0.006 | 0.34 |
| MGW5CL-O | 6.5 | 1.5 | 3.5 | 17 | – | 8.5 | 6.5 | 20.5 | 10 | – | 4 | 5.5 | 1.6 | 0.006 | 0.34 |
| MGW7C-O | 9 | 1.9 | 5.5 | 25 | 19 | 3 | 10 | 31.2 | 14 | – | 5.2 | 6 | 3.2 | 0.018 | 0.51 |
| MGW7H-O | 9 | 1.9 | 5.5 | 25 | 19 | 3 | 19 | 41 | 14 | – | 5.2 | 6 | 3.2 | 0.026 | 0.51 |
| MGW9C-O | 12 | 2.95 | 6 | 30 | 21 | 4.5 | 12 | 39.7 | 18 | – | 7 | 6 | 4.5 | 0.038 | 0.91 |
| MGW9H-O | 12 | 2.95 | 6 | 30 | 23 | 3.5 | 24 | 50.7 | 18 | – | 7 | 6 | 4.5 | 0.053 | 0.91 |
| MGW12C-O | 14 | 3.45 | 8 | 40 | 28 | 6 | 15 | 45.1 | 24 | – | 8.5 | 8 | 4.5 | 0.066 | 1.49 |
| MGW12H-O | 14 | 3.45 | 8 | 40 | 28 | 6 | 28 | 59.4 | 24 | – | 8.5 | 8 | 4.5 | 0.093 | 1.49 |
| MGW15C-O | 16 | 3.45 | 9 | 60 | 45 | 7.5 | 20 | 53.8 | 42 | 23 | 9.5 | 8 | 4.5 | 0.138 | 2.86 |
| MGW15H-O | 16 | 3.45 | 9 | 60 | 45 | 7.5 | 35 | 72.8 | 42 | 23 | 9.5 | 8 | 4.5 | 0.2 | 2.86 |
There are many types of HIWIN products,we can not upload all of them at present.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
If you have any demands for MGW9H-O , feel free contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
