PGHW55HC HIWIN LINEAR GUIDEWAY BLOCK RAIL
(1)Construction
The PG is a linear guideway assembly integrated with a magnetic encoder for position measurement.
(2)Features
- Magnetic encoder is built into the rail, saving installation space.
- Maintains high rigidity as well as high accuracy.
- Both the sensor and the magnetic strip are protected from harmful external contaminants such as dust, iron chips, etc.
- Non-contact measuring sensor for longer life.
- Can measure distances up to 30 m.
- Can withstand humidity and high-temperature environments, along with oily, dusty and high vibration applications.
- High resolution
- Easy installation
Description
PGHW55HC HIWIN LINEAR GUIDEWAY BLOCK RAIL

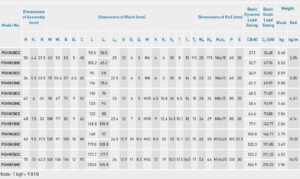

| Model | Dimensions of Assembly(mm) | Dimensions of Block(mm) | Dimensions of Rail(mm) | Basic Dynamic Load Rating | Basic Static Load Rating | Weight | |||||||||||||||
| H | H1 | N | W | B | C | L | G | G1 | M | K | T | WR | HR | M1xl1 | P | E | C(kN) | C0(kN) | Block(kg) | Rail(kg/m) | |
| PGHW20CC | 30 | 4.6 | 21.5 | 63 | 53 | 40 | 90.5 | 12 | 6 | M6 | 6 | 8 | 20 | 17.5 | M6x10 | 60 | 20 | 27.1 | 36.68 | 0.4 | 2.05 |
| PGHW20HC | 30 | 4.6 | 21.5 | 63 | 53 | 40 | 105.2 | 12 | 6 | M6 | 6 | 8 | 20 | 17.5 | M6x10 | 60 | 20 | 32.7 | 47.96 | 0.52 | 2.05 |
| PGHW25CC | 36 | 5.5 | 23.5 | 70 | 57 | 45 | 95 | 12 | 6 | M8 | 6 | 8 | 23 | 22 | M6x12 | 60 | 20 | 34.9 | 52.82 | 0.59 | 3.05 |
| PGHW25HC | 36 | 5.5 | 23.5 | 70 | 57 | 45 | 116 | 12 | 6 | M8 | 6 | 8 | 23 | 22 | M6x12 | 60 | 20 | 42.2 | 69.07 | 0.8 | 3.05 |
| PGHW30CC | 42 | 6 | 31 | 90 | 72 | 52 | 110 | 12 | 6 | M10 | 6.5 | 8.5 | 28 | 26 | M8x15 | 80 | 20 | 48.5 | 71.87 | 1.09 | 4.31 |
| PGHW30HC | 42 | 6 | 31 | 90 | 72 | 52 | 133 | 12 | 6 | M10 | 6.5 | 8.5 | 28 | 26 | M8x15 | 80 | 20 | 58.6 | 93.99 | 1.44 | 4.31 |
| PGHW35CC | 48 | 7.5 | 33 | 100 | 82 | 62 | 123 | 12 | 7 | M10 | 9 | 10.1 | 34 | 29 | M8x17 | 80 | 20 | 64.6 | 93.88 | 1.56 | 6.14 |
| PGHW35HC | 48 | 7.5 | 33 | 100 | 82 | 62 | 148.8 | 12 | 7 | M10 | 9 | 10.1 | 34 | 29 | M8x17 | 80 | 20 | 77.9 | 122.77 | 2.06 | 6.14 |
| PGHW45CC | 60 | 9.5 | 37.5 | 120 | 100 | 80 | 148 | 12.9 | 10 | M12 | 8.5 | 15.1 | 45 | 38 | M12x24 | 105 | 22.5 | 103.8 | 146.71 | 2.79 | 10.25 |
| PGHW45HC | 60 | 9.5 | 37.5 | 120 | 100 | 80 | 179.8 | 12.9 | 10 | M12 | 8.5 | 15.1 | 45 | 38 | M12x24 | 105 | 22.5 | 125.3 | 191.85 | 3.69 | 10.25 |
| PGHW55CC | 70 | 13 | 43.5 | 140 | 116 | 95 | 172.7 | 12.9 | 11 | M14 | 12 | 17.5 | 53 | 44 | M14x25 | 120 | 30 | 153.2 | 211.23 | 4.52 | 14.92 |
| PGHW55HC | 70 | 13 | 43.5 | 140 | 116 | 95 | 210.8 | 12.9 | 11 | M14 | 12 | 17.5 | 53 | 44 | M14x25 | 120 | 30 | 184.9 | 276.23 | 5.96 | 14.92 |
