QR_35C HIWIN LINEAR GUIDEWAY RAIL BLOCK
The HIWIN linear guideways of the RG series use rollers rather than balls as rolling elements. The RG series provides extremely good rigidity and very good loading capacity. It is designed with a 45° contact angle. Its linear contact surface greatly reduces deformation from the loading produced and therefore ensures veiy good rigidity and loading capacity in all 4 loading directions. The linear guides of the RG series are therefore ideal for use in high-precision manufacturing.
The models of the QR series with SynchMotion technology offer all the positive properties of the standard series RG.
Controlled movement of the rollers at a defined distance also results in improved synchronous performance,
higher reliable travel speeds, extended lubrication intervalsand less running noise.
Since the installation dimensions of the QR blocks are identical to those of the RG blocks,
they are also fitted on the RGR standard rail and can therefore be interchanged with ease.
Description
QR_35C HIWIN LINEAR GUIDEWAY RAIL BLOCK

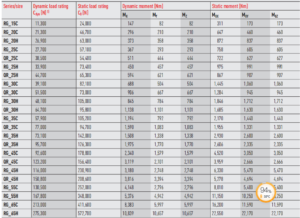

| Series/size | Dynamic load rating | Static load rating | Dynamic moment | Static moment Nm | ||||
| Mx | My | Mz | Mox | Moy | Moz | |||
| RG_15C | 11,300 | 24,000 | 147 | 82 | 82 | 311 | 173 | 173 |
| RG_20C | 21300 | 46700 | 296 | 210 | 210 | 647 | 460 | 460 |
| RG_20H | 26,900 | 63,000 | 373 | 358 | 358 | 872 | 837 | 837 |
| RG_25C | 27,700 | 57100 | 367 | 293 | 293 | 758 | 605 | 605 |
| QR_25C | 38500 | 54,400 | 511 | 44 | 444 | 722 | 627 | 627 |
| RG_25H | 33,900 | 73,400 | 450 | 457 | 457 | 975 | 991 | 991 |
| QR_25H | 44700 | 65,300 | 594 | 621 | 621 | 867 | 907 | 907 |
| RG_30C | 39100 | 82,100 | 688 | 504 | 504 | 1,445 | 1,060 | 1,060 |
| QR_30C | 51500 | 73000 | 906 | 667 | 667 | 1,284 | 945 | 945 |
| RG_30H | 48,100 | 105,000 | 845 | 784 | 784 | 1,846 | 1712 | 1712 |
| QR_30H | 64,700 | 95,800 | 1,138 | 1,101 | 1,101 | 1,685 | 1,630 | 1,630 |
| RG_35C | 57,900 | 105,200 | 1,194 | 792 | 792 | 2,170 | 1,440 | 1,440 |
| QR_35C | 77000 | 94,700 | 1,590 | 1,083 | 1,083 | 1,955 | 1,331 | 1,331 |
| RG_35H | 73,100 | 142,000 | 1,508 | 1,338 | 1,338 | 2,930 | 2,600 | 2,600 |
| QR_35H | 95,700 | 126,300 | 1,975 | 1770 | 1.77 | 2,606 | 2,335 | 2,335 |
| RG_45C | 92,600 | 178800 | 2,340 | 1,579 | 1,579 | 4520 | 3050 | 3050 |
| QR_45C | 123,200 | 156,400 | 3,119 | 2,101 | 2,101 | 3,959 | 2666 | 2666 |
| RG_45H | 116000 | 230,900 | 3,180 | 2,748 | 2748 | 6,330 | 5,470 | 5,470 |
| QR_45H | 150,800 | 208,600 | 3,816 | 3,394 | 3,394 | 5,278 | 4,694 | 4,694 |
| RG_55C | 130,500 | 252,000 | 4,148 | 2,796 | 2,796 | 8,010 | 5,400 | 5,400 |
| RG_55H | 167,800 | 348,000 | 5,376 | 4,942 | 4,942 | 11150 | 10,250 | 10,250 |
| RG_65C | 213,000 | 411,600 | 8,383 | 5,997 | 5.997 | 16,200 | 11,590 | 11,590 |
| RG_65H | 275,300 | 572,700 | 10839 | 10,657 | 10.657 | 22,550 | 22,170 | 22,170 |
There are many types of HIWIN products,we can not upload all of them at present.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
If you have any demands for QR_35C, feel free contact us online or leave a message .There are many types of HIWIN products,we can not upload all of them at present.
We also have excellent logistics transportation system , It is very convenient for demands of global market .
Product Inquire Now
