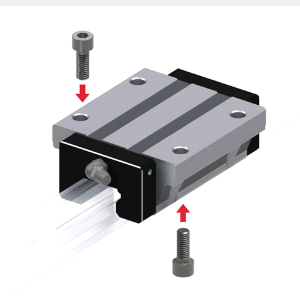

SHS15LC THK BLOCK
The LM block has the same cross-sectional
shape as model SHS-C, but has a longer overall
LM block length (L) and a greater rated load.
Description
| Model No. | Outer clmensions | LM Mode dimensions | Riot hole far siderippte” | Mass | |||||||||||||||
| ft M | w | Length L | B | c | s | H | L. | T | T. | K | N | E | Grease | Go | f> | Do | LM block kg | LM rail kg/m | |
| SHS15C SHS15LC | 24 | 47 | 64.4 79.4 | 38 | 30 | M5 | 4.4 | 4B 63 | 5.9 | 8 | 21 | 5.5 | 5.5 | PB1Q21B | 4 | 4 | 3 | 0.23 0.29 | 1.3 |
| SHS20C SHS20LC | 30 | 63 | 79 98 | 53 | 40 | M6 | 5.4 | W 78 | 72 | 10 | 25.4 | 6.5 | 12 | B-M6F | 43 | 53 | 3 | 0.46 0.61 | 2.3 |
| SHS25C SHS25LC | 36 | 70 | 92 109 | 57 | 45 | M8 | 6.8 | 71 88 | 9.1 | 12 | 302 | 7.5 | 12 | B-M6F | 6 | 5.5 | 3 | 0.72 0.89 | 3.2 |
| SHS 30C SHS 30LC | 42 | 90 | 106 131 | 72 | 52 | M10 | 8.5 | WJ 105 | 11.5 | 15 | 35 | 8 | 12 | B-M6F | 5.5 | 6 | 5.2 | 1.34 1.66 | 4.5 |
| SHS 35C SHS 35LC | 48 | 100 | 122 152 | 82 | 62 | M10 | 8.5 | 93 123 | 11.5 | 15 | 40.5 | 8 | 12 | B-M6F | 6.5 | 5.5 | 5.2 | 1.9 2.54 | 6.2 |
| SHS 45C SHS 45LC | 60 | 120 | 140 174 | 100 | 80 | M12 | 10.5 | 10b 140 | 14.1 | 18 | 51.1 | 105 | 16 | B-PT1/8 | 8 | 8 | 5.2 | 324 4.19 | 10.4 |
| SHS 55C SHS 55LC | 70 | 140 | 171 213 | 116 | 95 | M14 | 12.5 | 131 173 | 16 | 21 | 57.3 | 11 | 16 | B-PT1/8 | 10 | 8 | 5.2 | 5.35 6.97 | 14.5 |
| SHS65C SHS65LC | 90 | 170 | 221 272 | 142 | 110 | M16 | 145 | 175 226 | 18_8 | 24 | 71 | 19 | 16 | B-PT1/8 | 10 | 12 | 5.2 | 10.7 13.7 | 23.7 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Own laarge spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect… There are many types of THK products,we can not upload all of them at present. If you have any demands ， feel free to contact us online or leave a message .We also have excellet logistics transportation system , It is very convenient for demands of global market .
