SR150T THK LINEAR GUIDE BLOCK
The LM block has the same height as model
SR-W and can be mounted from the bottom.
Description
SR150T THK LINEAR GUIDE BLOCK

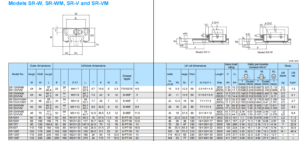

| Model No. | Outer dimensions | LM block dimensions | H3 | Mass | |||||||||||
| Height M | Mdth W | Length L | B | C | SXf | L, | T | K | N | E | Grease nipple | LM btock kg | LM ral kg/m | ||
| SR 15W/WM SR 15V/VM | 24 | 34 | 57 40.4 | 26 | 26 | M4X7 | 39.5 22.9 | 5.7 | 19.5 | 6 | 5.5 | PB1021B | 4.5 | 0.2 0.12 | 1.2 |
| SR20W/WM SR20V/VM | 28 | 42 | 66.2 47.3 | 32 | 32 | M5X8 | 46.7 27.8 | 7.2 | 22 | 6 | 12 | B-M6F | 6 | 0.3 0.2 | 2.1 |
| SR25WY/WMY SR 25VY/VMY | 33 | 48 | 83 59.2 | 35 | 35 | M6X9 | 59 35.2 | 7.7 | 26 | 7 | 12 | B-M6F | 7 | 0.4 0.3 | 2.7 |
| SR30W/WM SR30V/VM | 42 | 60 | 96.8 67.9 | 40 | 40 | M8X12 | 69.3 40.4 | 8.5 | 32.5 | 8 | 12 | B-M6F | 9.5 | 0.8 0.5 | 4.3 |
| SR35W/WM SR35V/VM | 48 | 70 | 111 77.6 | 50 | 50 | M8X12 | 79 45.7 | 12.5 | 36.5 | 8.5 | 12 | B-M6F | 11.5 | 1.2 0.8 | 6.4 |
| SR45W | 60 | 86 | 126 | 60 | 60 | M10X15 | 90.5 | 15 | 47.5 | 11.5 | 16 | B-PT1/8 | 12.5 | 2.2 | 11.3 |
| SR55W | 68 | 100 | 156 | 75 | 75 | M12X20 | 117 | 16.7 | 54.5 | 12 | 16 | B-PT1/8 | 13.5 | 3.6 | 12.8 |
| SR70T | 85 | 126 | 194.6 | 90 | 90 | M16X25 | 147.6 | 24.5 | 70 | 12 | 16 | B-PT1/8 | 15 | 7 | 22.8 |
| SR85T | 110 | 156 | 180 | 100 | 80 | M18X30 | 130 | 25.5 | 91.5 | 27 | 12 | A-PT1/8 | 18.5 | 10.1 | 34.9 |
| SR100T | 120 | 178 | 200 | 120 | 100 | M20X35 | 150 | 29.5 | 101 | 32 | 12 | A-PT1/8 | 19 | 14.1 | 46.4 |
| SR 120T | 110 | 205 | 235 | 160 | 120 | M20X 35 | 180 | 24 | 95 | 14 | 13.5 | B-PT1/4 | 15 | — | — |
| SR150T | 135 | 250 | 280 | 200 | 160 | M20X35 | 215 | 24 | 113 | 17 | 13.5 | B-PT1/4 | 22 | — | — |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of SR150T， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
