Home IKO TAM223016 IKO Shell Type Needle Roller Bearing
TA223016Z IKO Shell Type Needle Roller Bearing
Back to products
TA223020Z IKO Shell Type Needle Roller Bearing
Click to enlarge

TAM223016 IKO Shell Type Needle Roller Bearing

Shell Type Needle Roller Bearings are light

weight bearings with large load ratings. They employ

a shell type outer ring made from a thin special-steel

plate which is accurately drawn, carburized and

quenched, thus providing the lowest sectional height

among the needle roller bearings.

There are two types of bearings available in this

series; the caged type and the full complement type.

The appropriate type can be selected according to the

operating conditions. The caged type has a structure

in which the needle rollers are accurately guided by

the cage and thrust rings. It is useful for applications

at high-speed rotation. The full complement type nee

dle roller bearing, on the other hand, is suitable for

heavy-load applications at low-speed rotation.

Since these bearings are press-fitted into the housing,

no fixtures for axial positioning are needed. They are

ideal for use in mass-produced articles that require

economy, and have a wide variety of applications.

INQUIRE NOW

"*" indicates required fields

Category: IKO Tags: TAM2220, TA2225Z, TAM2225, TA 2230Z, TAM2230, TA223016Z, TAM223016
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

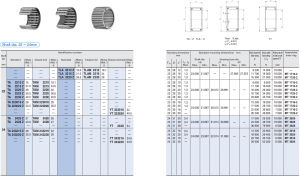

TAM223016 IKO Shell Type Needle Roller Bearing

Shaft dia.

mm

StandardMass (Ref.) gClosed endMass (Ref.)

9

StancardMass (Ref.) gClosed endMass (Ref.)

g

Grease retainedMass (Rof.) g
————TLA 2212Z15.6TLAM 221218.1——
————TLA 2216Z21.5TLAM 221624——
—————TLA 2220 Z26.5TLAM 222029———
TA 2210Z15TAM 221018.1——————
TA 2215Z21.5TAM 221524.5——————
22TA 2220Z29TAM 222032——————
TA 2225Z35.5TAM 222538.5——————
TA 2230Z42.5TAM 223045.5————————
TA 223016 Z26TAM 22301629——————
TA 223020Z32.5TAM 22302035.5——————
—YT 22301632
————————YT 22302040.5
TA 2420Z31TAM 242035——————
TA 2428Z43.5TAM 242847——————
—YT 242854
24TA 243216Z28TAM 24321632———————
TA 243220Z35.5TAM 24322039———————
YT 24321634.5
YT 24322043.5



WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of  IKO products.Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…We also have excellent logistics transportation system , It is very convenient for demands of global market .Own large spot inventory .There are many types of IKO products,we can not upload all of them at present,If you have any demands for TA TAM223016,feel free to contact us or email us.

Product Inquire Now

"*" indicates required fields

Shipping & Delivery

Free Delivery

Orders from 10,000 USD will be shipped free of charge within Southeast Asia!

Delivery Time: Ready for Shipping within 24h

We try hard to make as much orders as possible ready for shipping within 24 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. The independent official seal for excellence in shipment always shows you, have fast we are currently working (make your order ready for pick-up by our logistics partner).

Delivery areas:

We deliver to all over the world , for example:Germany, Austria, Switzerland and Belgium, Bulgaria, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Sweden, Switzerland, Slovakia, Slovenia, Spain, Czech Republic, Hungary, USA. Please find information about delivery costs below.

Returns

If a product does not meet your expectation for any reason, you can return the product without ifs and buts. To make it even more easy for you, we recommend to use the attached return form and the return stickers free of charge within 30 days of receipt. Or contact our online service anytime , we will try to solve problem ASAP .
