Home THK THK Ball Screw Model EF15 Type Support Unit on the Supported Side
THK Ball Screw Model EF12 Type Support Unit on the Supported Side
Back to products
THK Ball Screw Model EF20 Type Support Unit on the Supported Side
Click to enlarge

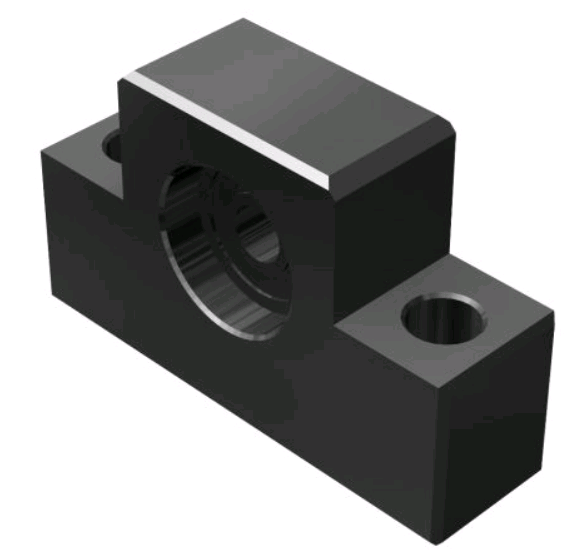

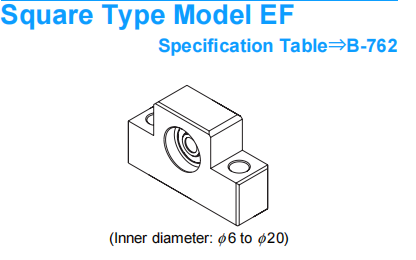

THK Ball Screw Model EF15 Type Support Unit on the Supported Side

For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts

are available as standard to meet diversified applications.

INQUIRE NOW

"*" indicates required fields

Category: THK Tags: EF10, EF12, EF15, EF6, EF8
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

THK Ball Screw Model EF15 Type Support Unit on the Supported Side. online supply .

Welcome inquiry .

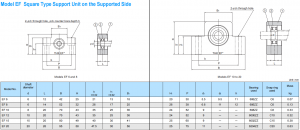

Model No.Shaft  diameter

d





L





B





H



b

±0.02



hx

±0.02





B1





Hi





P





d1





dz





h

Bearing

used

Snap ring usedMass

kg

EF 6612422521131820305.59.511606ZZC60.07
EF 8614523226172526386.61112606ZZC60.13
EF 10820704335253624529-—608ZZC80.33
EF 121020704335253624529——6000ZZC100.32
EF 1515208049403041256096002ZZC150.38
EF 202026955847.53056257511——6204ZZC200.63

WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.

Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…

There are many types of THK products,we can not upload all of them at present.

If you have any demands of  EF15, feel free to contact us online or leave a message .

We also have excellent logistics transportation system , It is very convenient for demands of global market .
