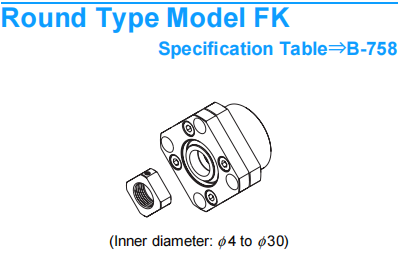

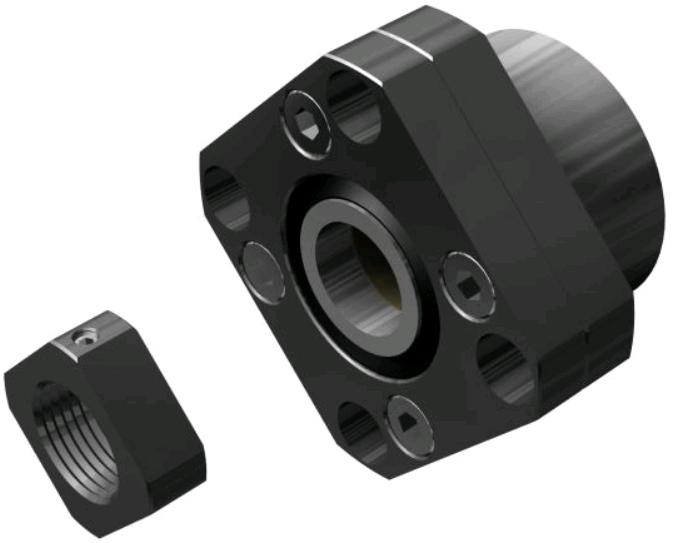

THK Ball Screw Model FK25 Round Type Support Unit on the Fixed Side
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
Description
THK Ball Screw Model FK25Round Type Support Unit on the Fixed Side. online supply .
Welcome inquiry .

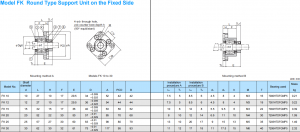

| Model No. | Shaft diameter d | L | H | F | E | D | A | PCD | B | Installation procedure A | Installation procedure | di | ₂ | h | M | T | Bearing used | Mass kg | ||||
| Li | ₁ | L | ₂ | |||||||||||||||||||
| FK 10 | 10 | 27 | 10 | 17 | 29.5 | 34 | -0.009 -0.025 | 52 | 42 | 42 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | M3 | 16 | 7000HTDFGMP5 | 0.21 | |
| FK 12 | 12 | 27 | 10 | 17 | 29.5 | 36 | -0.009 -0.025 | 54 | 44 | 44 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | M3 | 19 | 7001HTDFGMP5 | 0.22 | |
| FK 15 | 15 | 32 | 15 | 17 | 36 | -0.009 40 -0.025 | 63 | 50 | 52 | 10 | 6 | 12 | 8 | 5.5 | 9.5 | 6 | M3 | 22 | 7002HTDFGMP5 | 0.39 | ||
| FK 20 | 20 | 52 | 22 | 30 | 50 | 57 -0.01 -0.029 | 85 | 70 | 68 | 8 | 10 | 12 | 14 | 6.6 | 11 | 10 | M4 | 30 | 7204HTDFGMP5 | 1.09 | ||
| FK 25 | 25 | 57 | 27 | 30 | 60 | -0.01 63 -0.029 | 98 | 80 | 79 | 13 | 10 | 20 | 17 | 9 | 15 | 13 | M5 | 35 | 7205HTDFGMP5 | 1.49 | ||
| FK 30 | 30 | 62 | 30 | 32 | 61 | 75 -0.01 -0.029 | 117 | 95 | 93 | 11 | 12 | 17 | 18 | 11 | 17.5 | 15 | M6 | 40 | 7206HTDFGMP5 | 2.32 | ||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of FK25， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
