THK Cross-Roller Ring USP-Grade RB 40040USP
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
Description
THK Cross-Roller Ring USP-Grade RB 40040USP, online supply .
Welcome inquiry .

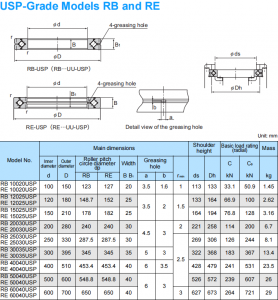

| Model No. | Main dimensions | Shoulder height | Basicload rating (radial) | Mass | |||||||||
| Inner diameter d | Outer diameter D | Roller pjtch circle diameter dp | Width B Bi | Greasing hole |
rmin | ds | Dh | C kN | Co kN | kg | |||
| RB | RE | a | b | ||||||||||
| RB 10020USP RE 10020USP | 100 | 150 | 123 | 127 | 20 | 3.5 | 1.6 | 1 | 113 | 133 | 33.1 | 50.9 | 1.45 |
| RB 12025USP RE 12025USP | 120 | 180 | 148.7 | 152 | 25 | 3.5 | 2 | 1.5 | 133 | 164 | 66.9 | 100 | 2.62 |
| RB 15025USP RE 15025USP | 150 | 210 | 178 | 182 | 25 | 164 | 194 | 76.8 | 128 | 3.16 | |||
| RB 20030USP RE 20030USP | 200 | 280 | 240 | 240 | 30 | 4.5 | 3 | 2 | 221 | 258 | 114 | 200 | 6.7 |
| RB 25030USP RE 25030USP | 250 | 330 | 287.5 | 287.5 | 30 |
2.5 | 269 | 306 | 126 | 244 | 8.1 | ||
| RB 30035USP RE 30035USP | 300 | 395 | 345 | 345 | 35 | 5 | 3 | 322 | 368 | 183 | 367 | 13.4 | |
| RB 40040USP RE 40040USP | 400 | 510 | 453.4 | 453.4 | 40 | 6 | 3.5 | 428 | 479 | 241 | 531 | 23.5 | |
| RB 50040USP RE 50040USP | 500 | 600 | 548.8 | 548.8 | 40 | 6 | 3 | 526 | 572 | 239 | 607 | 26 | |
| RB 60040USP RE 60040USP | 600 | 700 | 650 | 650 | 40 | 3 | 627 | 673 | 264 | 721 | 29 | ||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of RB 40040USP feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
