THK linear guide HDR25US LM block
The Model HDR is designed to equally bear loads applied to the LM block from four directions. (Four directions: radial, reverse radial, left, and right) As a result, this model can be used in any orientation, enabling a wide variety of applications.
Description
HDR25US Orginal THK products

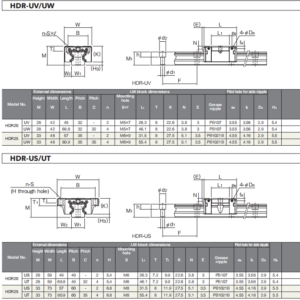

| Model No. | External dimensions | LM | block dimensions | Pilot hole for side nipple | Ha | |||||||||||||||
| HeightM | WidthW | LengthL | PitchB | Pitchc | n | H | MountingholeS | L | T | T | K | N | E | Greasenipple | eo | fo | Do | |||
| HDR20 | Us | 28 | 59 | 49 | 49 | 2 | 5.4 | M6 | 26.3 | 7.2 | 9.9 | 22.6 | 3.8 | 3 | PB107 | 3.55 | 3.56 | 2.9 | 5.4 | |
| UT | 28 | 59 | 68.8 | 49 | 32 | 4 | 5.4 | M6 | 46.1 | 7.2 | 9.9 | 22.6 | 3.8 | 3 | PB107 | 3.55 | 3.56 | 2.9 | 5.4 | |
| HDR25 | Us | 33 | 73 | 57 | 60 | 2 | 6.8 | M8 | 31.5 | 8 | 11.9 | 27.5 | 5.1 | 3.5 | PB1021B | 4.55 | 4.16 | 2.9 | 5.5 | |
| UT | 33 | 73 | 80.9 | 60 | 35 | 4 | 6.8 | M8 | 55.4 | 8 | 11.9 | 27.5 | 5.1 | 3.5 | PB1021B | 4.55 | 4.16 | 2.9 | 5.5 | |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands ，
feel free to contact us online or leave a message .
