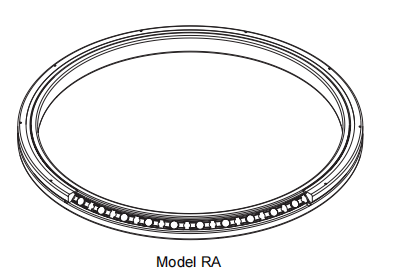

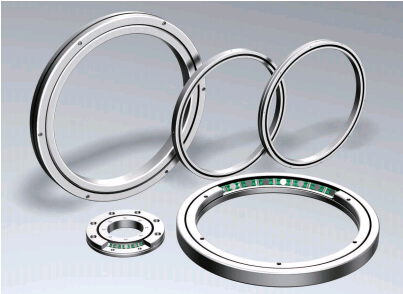

THK Separable Outer Ring Type RA 5008
A compact type similar to model RB with the
thinnest possible inner and outer rings.
Optimal for locations requiring a light-weight and
compact design such as the swivel portions of
robots and manipulators.
THK Separable Outer Ring Type RA 5008, online supply .
Welcome inquiry .

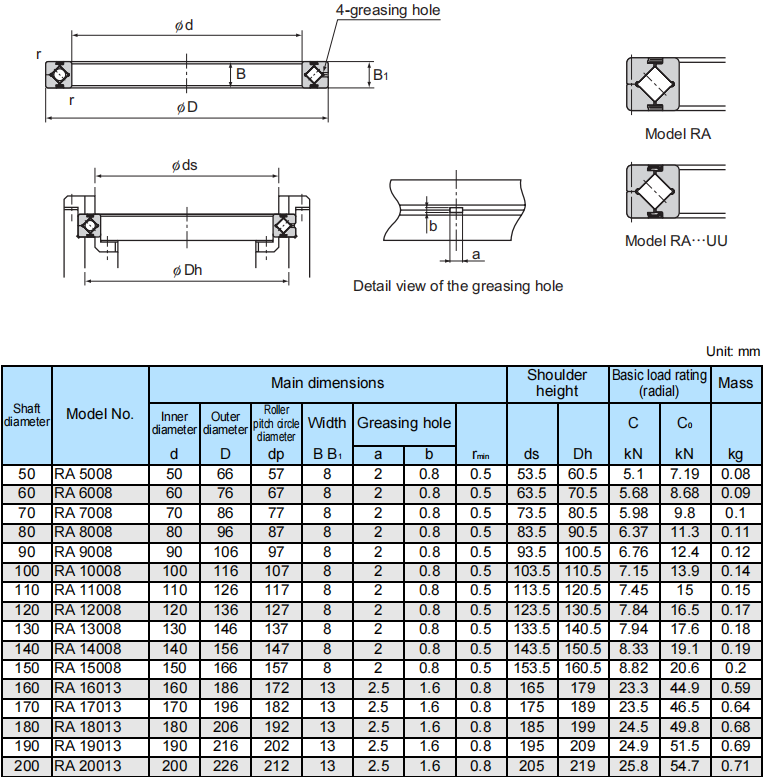

Shaft diameter | Model No. | Main dimensions | Shoulder height | Basic load rating (radial) | Mass | ||||||||
Inner diameter d | Outer diameter D | Roller pitch drcle diameter dp | Width B B1 | Greasing hole | rmin | ds | Dh | C KN | Co KN | kg | |||
a | b | ||||||||||||
50 | RA 5008 | 50 | 66 | 57 | 8 | 2 | 0.8 | 0.5 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 |
60 | RA 6008 | 60 | 76 | 67 | 8 | 2 | 0.8 | 0.5 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
70 | RA 7008 | 70 | 86 | 77 | 8 | 2 | 0.8 | 0.5 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
80 | RA 8008 | 80 | 96 | 87 | 8 | 2 | 0.8 | 0.5 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
90 | RA 9008 | 90 | 106 | 97 | 8 | 2 | 0.8 | 0.5 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 |
100 | RA 10008 | 100 | 116 | 107 | 8 | 2 | 0.8 | 0.5 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
110 | RA 11008 | 110 | 126 | 117 | 8 | 2 | 0.8 | 0.5 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
120 | RA 12008 | 120 | 136 | 127 | 8 | 2 | 0.8 | 0.5 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
130 | RA 13008 | 130 | 146 | 137 | 8 | 2 | 0.8 | 0.5 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
140 | RA 14008 | 140 | 156 | 147 | 8 | 2 | 0.8 | 0.5 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
150 | RA 15008 | 150 | 166 | 157 | 8 | 2 | 0.8 | 0.5 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
160 | RA 16013 | 160 | 186 | 172 | 13 | 2.5 | 1.6 | 0.8 | 165 | 179 | 23.3 | 44.9 | 0.59 |
170 | RA 17013 | 170 | 196 | 182 | 13 | 2.5 | 1.6 | 0.8 | 175 | 189 | 23.5 | 46.5 | 0.64 |
180 | RA 18013 | 180 | 206 | 192 | 13 | 2.5 | 1.6 | 0.8 | 185 | 199 | 24.5 | 49.8 | 0.68 |
190 | RA 19013 | 190 | 216 | 202 | 13 | 2.5 | 1.6 | 0.8 | 195 | 209 | 24.9 | 51.5 | 0.69 |
200 | RA 20013 | 200 | 226 | 212 | 13 | 2.5 | 1.6 | 0.8 | 205 | 219 | 25.8 | 54.7 | 0.71 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of RA 5008 feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
