THK Standard-Stock Precision Ball Screw Finished Shaft Ends BNK 1002-3RRG0+293LC5Y
Model BNK

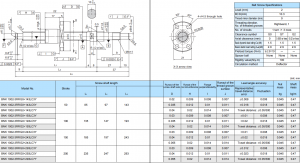

Specification Table⇒B-608
For this model, screw shafts with a diameter φ4
to φ25 mm and a lead 1 to 20 mm are available
as the standard.
THK Standard-Stock Precision Ball Screw Finished Shaft Ends Model BNK 1002-3RRG0+293LC5Y Welcome inquiry .
Model No. | Runout of thescreW snant aXIsD | Runout of thenut crcumferenceH | Flangeperpendicuanty1 | Ruhout or thethread groovesuraceJ | Lead angle accuracy | Nutmasskg | Shaftmasskg/m | |
Representativetravel distanceerror | Fluctuation | |||||||
BNK 1002-3RRG0+143LC3Y | 0.02 | 0.09 | O.O08 | O.O0 | ±O.008 | 0.008 | 0.045 | 0.47 |
BNK 1002-3RRG0+143LC5Y | 0.035 | 0.012 | 0.01 | 0.011 | ±U.0T8 | 0.018 | 0.045 | 0.47 |
BNK 1002-3RRG2+143LC7Y | 0.04 | 0.02 | 0.014 | O.014 | Travel distance:±0.05/300 | 0.045 | 0.47 | |
BNK 1002-3RRG0+193LC3Y | 0.03 | 0.09 | 0.008 | 0.007 | ±0.01 | 0.008 | 0.045 | 0.47 |
BNK 1002-3RRG0+193LC5Y | 0.035 | 0.012 | 0.1 | 0.011 | ±0.02 | 0.018 | 0.045 | 0.47 |
BNK 1002-3RRG2+193LC7Y | 0.04 | 0.02 | 0.014 | 0.014 | Travel distance:±0.05/300 | 0.045 | 0.47 | |
BNK 1002-3RRG0+243LC3Y | 0.03 | 0.009 | 0.008 | 0.007 | ±0.01 | 0.008 | 0.045 | 0.47 |
BNK 1002-3RRG0+243LC5Y | 0.04 | 0.012 | 0.01 | 0.011 | ±0.02 | 0.018 | 0.045 | 0.47 |
BNK 1002-3RRG2+243LC7Y | 0.055 | 0.02 | 0.014 | 0.014 | Travel distance:±0.05/300 | 0.045 | 0.47 | |
BNK 1002-3RRG0+293LC3Y | 0.03 | 0.009 | 0.008 | 0.007 | ±0.012 | 0.008 | 0.045 | 0.47 |
BNK1002-3RRG0+293LC5Y | 0.04 | 0.012 | 0.01 | 0.011 | 士0.023 | 0.018 | 0.045 | 0.47 |
BNK 1002-3RRG2+293LC7Y | 0.055 | 0.02 | O.O14 | O.O14 | Travel distance:±0.05/300 | 0.045 | O.47 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect… There are many types of THK products,we can not upload all of them at present. If you have any demands of THK Standard-Stock Precision Ball Screw Unfinished Shaft Ends
BNK 1002-3RRG0+293LC5Y Feel free to contact us online or leave a message . We also have excellent logistics transportation system , It is very convenient for demands of global market .
