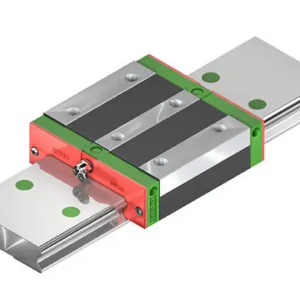

WE_27C HIWIN LINEAR GUIDEWAY RAIL
For WE/QW linear guideways, a distinction is made between interchangeable and non-interchangeable models.
The dimensions of both models are the same. The main difference is that the block and rail in the interchangeable models can be freely interchanged.
Block and rail can therefore be ordered separately and fitted by the customer. Their accuracy extends to class P. Given their stringent dimensional accuracy check,
the interchangeable modules are a good choice for customers who do not use rails in pairs on one axis. Non-interchangeable linear guideways are always supplied preassembled.
The order codes of the series include the dimensions, model, accuracy class, preload etc.
Description
WE_27C HIWIN LINEAR GUIDEWAY RAIL
| Series/size | Dynamic load rating | Static load rating | Dynamic moment Nm | Static moment Nm | ||||
| Mx | My | Mz | Mox | Moy | Moz | |||
| WE_17C | 5,230 | 9,640 | 82 | 34 | 34 | 150 | 62 | 62 |
| WE_21C | 7,210 | 13,700 | 122 | 53 | 53 | 230 | 100 | 100 |
| QW_21C | 9,000 | 12,100 | 156 | 67 | 67 | 210 | 90 | 90 |
| WE_27C | 12,400 | 21,600 | 242 | 98 | 98 | 420 | 170 | 170 |
| QW_27C | 16,000 | 22,200 | 303 | 144 | 144 | 420 | 200 | 200 |
| WE_35C | 29,800 | 49,400 | 893 | 405 | 405 | 1,480 | 670 | 670 |
| WE_35C | 36,800 | 49,200 | 1,129 | 486 | 486 | 1,510 | 650 | 650 |
| WE_50C | 61,520 | 97,000 | 2,556 | 1,244 | 1,244 | 4,030 | 1,960 | 1,960 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for WE_27C , feel free contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
