YT2616 IKO Shell Type Needle Roller Bearing
Shell Type Needle Roller Bearings are light
weight bearings with large load ratings. They employ
a shell type outer ring made from a thin special-steel
plate which is accurately drawn, carburized and
quenched, thus providing the lowest sectional height
among the needle roller bearings.
There are two types of bearings available in this
series; the caged type and the full complement type.
The appropriate type can be selected according to the
operating conditions. The caged type has a structure
in which the needle rollers are accurately guided by
the cage and thrust rings. It is useful for applications
at high-speed rotation. The full complement type nee
dle roller bearing, on the other hand, is suitable for
heavy-load applications at low-speed rotation.
Since these bearings are press-fitted into the housing,
no fixtures for axial positioning are needed. They are
ideal for use in mass-produced articles that require
economy, and have a wide variety of applications.
Description
YT2616 IKO Shell Type Needle Roller Bearing
Identification number

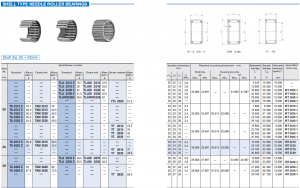

| Shaft dia. mm | Standard | Mass (Ref. I 9 | Closed end | Mass (Ref. » 9 | Standard | Mass (Ref. > g | Closed end | Mass (Ref.) g | Grease retained | Mass (RefJ g |
| — | — | — | — | TLA 2512 Z | 19.7 | TLAM 2512 | 23.5 | — | — | |
| — | — | — | — | TLA 2516Z | 26 | TLAM 2516 | 29.5 | — | — | |
| — | — | — | — | TLA 2520Z | 32 | TLAM 2520 | 36 | — | — | |
| — | — | TLA 2526Z | 41.5 | TLAM 2526 | 45.5 | —— | — | |||
| — | — | — | — | TLAW2538Z | 58.5 | TLAMW2538 | 62 | — | — | |
| YTL 2526 | 51.5 | |||||||||
| TA 2510 Z | 19.1 | TAM 2510 | 23 | — | — | — | — | — | — | |
| 25 | TA 2515 Z | 28.5 | TAM 2515 | 32.5 | — | — | — | — | — | — |
| TA 2520Z | 36.5 | TAM 2520 | 40.5 | — | — | — | — | — | — | |
| TA 2525Z | 45.5 | TAM 2525 | 49 | — | — | — | — | — | — | |
| TA 2530Z | 54.5 | TAM 2530 | 58.5 | — | — | — | — | — | — | |
| YT 2510 | 22.5 | |||||||||
| YT 2515 | 33 | |||||||||
| YT 2520 | 45 | |||||||||
| — | YT 2525 | 57 | ||||||||
| TA 2616 Z | 30.5 | TAM 2616 | 34.5 | — | — | — | — | — | — | |
| 26 | TA 2620Z | 38 | TAM 2620 | 42.5 | — | — | — | — | — | — |
| YT 2616 | 37 | |||||||||
| YT 2620 | 46.5 | |||||||||
| — | — | — | — | TLA 2816 Z | 28.5 | TLAM 2816 | 33.5 | — | — | |
| — | — | — | — | TLA 2820Z | 35.5 | FLAM 2820 | 40.5 | — | — | |
| 28 | TA 2820Z | 45 | TAM 2820 | 50 | — | — | — | — | — | — |
| TA 2830Z | 67.5 | TAM 2830 | 72.5 | — | — | — | — | — | — | |
| YT 2820 | 56.5 |
