16-5B1 OFSW HIWIN EXTERNAL RECIRCULATION BALLSCREW

STRUCTURE

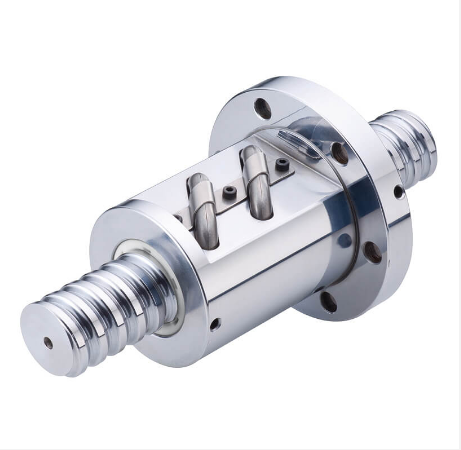

External recirculation type ballscrew,consists of the screw shaft,the ball nut, the steel balls, the return tubes and the fixing plate. The steel balls are introduced into the space between the screw shaft and the ball nut. The balls are diverted from the ball tracks and carried back by the ball guide return tube form a loop. Since the return tubes are located outside the nut body, this type is called the external recirculation type ball screw.

FEATURES
Adapted to wide kinds of shaft diameters and leads of ballscrew and Complete specifications.

INQUIRE NOW

"*" indicates required fields

Category: HIWIN Tags: 16-5B1, 80-20T3
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

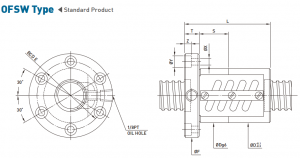

16-5B1 OFSW HIWIN EXTERNAL RECIRCULATION BALLSCREW

OFSW TYPE:   (O)Offset pitch preload, (F)Flange end, (S) Single nut, (W) tube within the nut diameter

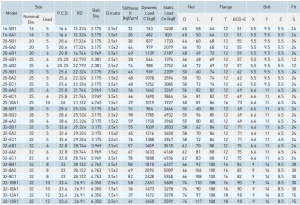

ModelSizeP.C.D.RDBall Dia.CircuitsNutFangeBoltFit
NominalDia.LeadDLFTBCD-EXYZS
16-5B116516.613.3243.1752.5×140586412515.59.55.524
16-5A116516.613.3243.1751.5×140506412515.59.55.524
20-5B120520.617.3243.1752.5×144606812555.59.55.524
20-5A220520.617.3243.1751.5×244706812555.59.55.524
20-6B120620.816.7443.9692.5×148697212595.59.55.524
25-4B125425.2522.7922.3812.5×146486912575.59.55.512
25-4B225425.2522.7922.3812.5×246726912575.59.55.512
25-5B125525.622.3243.1752.5×150607412625.59.55.524
25-5A225525.622.3243.1751.5×250707412625.59.55.524
25-5C125525.622.3243.1753.5×150727412625.59.55.524
25-6A225625.821.7443.9691.5×256828212696.6116.524
25-6C125625.821.7443.9693.5×156818212696.6116.524
25-10A125102621.1324.7631.5×160818616736.6116.524
28-5B128528.625.3243.1752.5×155608512696.6116.524
28-5B228528.625.3243.1752.5×255968512696.6116.524
28-6A228628.625.3243.1751.5×255808512696.6116.524
32-5B132532.629.3243.1752.5×158628412716.6116.524
32-5A232532.629.3243.1751.5×258708412716.6116.524
32-5C132532.629.3243.1753.5×158728412716.6116.524
32-6B132632.828.7443.9692.5×162708812756.6116.524
32-6A232632.828.7443.9691.5×262818812756.6116.524
32-6C132632.828.7443.9693.5×162838812756.6116.524
32-8B13283328.1324.7632.5×1669210016829148.530
32-8A23283328.1324.7631.5×26610610016829148.530
32-8C13283328.1324.7633.5×16610810016829148.530
32-10B1321033.426.916.352.5×17411010816909148.530
32-10A1321033.426.916.351.5×1749010816909148.530
32-12A1321233.426.916.351.5×1749710818909148.515
32-12B1321233.426.916.352.5×17411710818909148.515

WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.

There are many types of HIWIN products,we can not upload all of them at present. If you have any demands for  16-5B1 feel free to contact us online or leave a message.

Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…

We also have excellent logistics transportation system , It is very convenient for demands of global market.
