Home HIWIN 50-8T6 RSI HIWIN RECIRCULATION BALLSCREW
50-8T4 RSI HIWIN RECIRCULATION BALLSCREW
Back to products
50-10T3 RSI HIWIN RECIRCULATION BALLSCREW
Click to enlarge

50-8T6 RSI HIWIN RECIRCULATION BALLSCREW

STRUCTURE
Internal recirculation type ballscrew, consists of the screw spindle, the ball nut, the steel balls and the ball return caps. The steel balls make only one revolution around the screw spindle. The circuit is closed by a ball return cap in the nut allowing the balls to cross over adjacent ball tracks. Since the ball return caps are located inside the nut body, this is called the internal recirculation type ballscrew.

FEATURES
Adapted to normal leads and Outer diameter of nut is small.

INQUIRE NOW

"*" indicates required fields

Category: HIWIN Tags: 50-5T4, 50-5T6, 50-6T6, 50-8T6
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

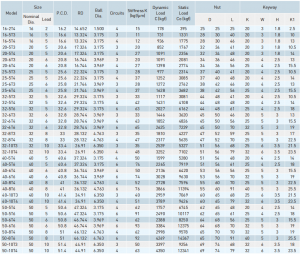

50-8T6 RSI HIWIN INTERNAL RECIRCULATION BALLSCREW

RSI TYPE:   (R)Round, (S)Single nut, (I) Internal Recirculation Cap

ModelSizeP.C.D.RDBall Dia.CircuitsNutKeyway
Nominal Dia.LeadDLKWHK1
16-2T416216.214.6521.542525252031.82.5
16-5T316516.613.3243.17532830402031.810
16-5T416516.613.3243.17542830462031.813
20-5T320520.617.3243.17533234412031.810.5
20-5T420520.617.3243.17543234482031.814
20-6T320620.816.7443.96933436462042.513
20-6T420620.816.7443.96943436562542.515.5
25-5T325525.622.3243.17533740412042.510.5
25-5T425525.622.3243.17543740482042.514
25-6T325625.821.7443.96933842462042.513
25-6T425625.821.7443.96943842562542.515.5
32-5T332532.629.3243.17534448412042.510.5
32-5T432532.629.3243.17544448482042.514
32-5T632532.629.3243.17564448612542.518
32-6T332632.828.7443.9693455046205313
32-6T432632.828.7443.9694455056255315.5
32-6T632632.828.7443.9696455070325319
32-8T33283328.1324.7633475259255317
32-8T43283328.1324.7634475270255322.5
32-10T3321033.426.916.3535156682563.521.5
32-10T4321033.426.916.3545156793263.523.5
40-5T440540.637.3243.17545154482042.514
40-5T640540.637.3243.17565154612542.518
40-6T440640.836.7443.9694535656255315.5
40-6T640640.836.7443.9696535670325319
40-8T44084136.1324.7634556070255322.5
40-8T64084136.1324.7636556091405325.5
40-10T3401041.434.916.3536065682563.521.5
40-10T4401041.434.916.3546065793263.523.5
50-5T450550.647.3243.17546265482042.514
50-5T650550.647.3243.17566265612542.518
50-6T450650.846.7443.9694646856255315.5
50-6T650650.846.7443.9696646870325319
50-8T45085146.1324.7634657070325319
50-8T65085146.1324.7636657091405325.5
50-10T3501051.444.916.3536974683263.518
50-10T4501051.444.916.3546974793263.523.5



There are many types of HIWIN products,we can not upload all of them at present. If you have any demands for 50-8T6, feel free to contact us online or leave a message.

WHCD BEARING CO.,LIMITED is a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.

Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…

We also have excellent logistics transportation system , It is very convenient for demands of global market.

Product Inquire Now

"*" indicates required fields

Shipping & Delivery

Free Delivery

Orders from 10,000 USD will be shipped free of charge within Southeast Asia!

Delivery Time: Ready for Shipping within 24h

We try hard to make as much orders as possible ready for shipping within 24 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. The independent official seal for excellence in shipment always shows you, have fast we are currently working (make your order ready for pick-up by our logistics partner).

Delivery areas:

We deliver to all over the world , for example:Germany, Austria, Switzerland and Belgium, Bulgaria, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Sweden, Switzerland, Slovakia, Slovenia, Spain, Czech Republic, Hungary, USA. Please find information about delivery costs below.

Returns

If a product does not meet your expectation for any reason, you can return the product without ifs and buts. To make it even more easy for you, we recommend to use the attached return form and the return stickers free of charge within 30 days of receipt. Or contact our online service anytime , we will try to solve problem ASAP .
