Home HIWIN CGW45HC HIWIN LINEAR GUIDEWAY RAIL
CGW45CC HIWIN LINEAR GUIDEWAY RAIL
Back to products
CGR15R HIWIN LINEAR GUIDEWAY RAIL
Click to enlarge

CGW45HC HIWIN LINEAR GUIDEWAY RAIL

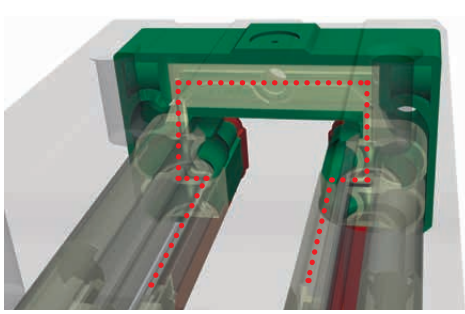

The HIWIN linear guideways of the CG series with O-arrangement of the ball tracks guarantee high torque loading capacity, especially in the M, direction. The modified track geometry ensures high load ratings. The new flexible end seal automatically adjusts itself to the rail contour and ensures a high, permanent dust protection. To protect the end seal against mechanical damage, the CG series is equipped with a sheet metal scraper in front of the end seal as standard.

INQUIRE NOW

"*" indicates required fields

Category: HIWIN Tags: CGW25HC, CGW30HC, CGW35HC, CGW45HC
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

CGW45HC HIWIN LINEAR GUIDEWAY RAIL

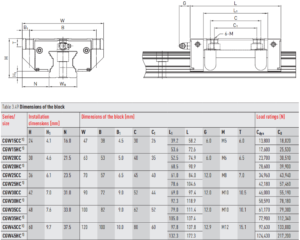

Series/sizeInstalation dimensions[mm]Dimensions of the block [mm]Load ratings [N]
HH1NWBB1CC1L1LGMTCdynCo
CGW15CC244.11647384.5302639.258.26M5613,800.0018,020.00
CGW15HC53.672.617,600.0025,530.00
CGW20CC304.621.563535403552.574.96M66.523,700.0030,510.00
CGW20HC68.590.928,600.0039,900.00
CGW25CC366.123.570576.5454061.08412M8734,960.0043,940.00
CGW25HC78.6104.642,180.0057,460.00
CGW30CC4273190729524469.097.412M1010.546,000.0055,190.00
CGW30HC92.3118.958,590.0078,180.00
CGW35CC487.63310829625279111.412M1010.161,170.0079,300.00
CGW35HC105137.477,900.00112,340.00
CGW45CC609.737.512010010806097.8137.812.9M1215.197,630.00133,000.00
CGW45HC132.3172.3124,430.00217,200.00

WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…
There are many types of HIWIN products,we can not upload all of them at present.
If you have any demands for CGW45HC , feel free contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .

Product Inquire Now

"*" indicates required fields

Shipping & Delivery

Free Delivery

Orders from 10,000 USD will be shipped free of charge within Southeast Asia!

Delivery Time: Ready for Shipping within 24h

We try hard to make as much orders as possible ready for shipping within 24 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. The independent official seal for excellence in shipment always shows you, have fast we are currently working (make your order ready for pick-up by our logistics partner).

Delivery areas:

We deliver to all over the world , for example:Germany, Austria, Switzerland and Belgium, Bulgaria, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Sweden, Switzerland, Slovakia, Slovenia, Spain, Czech Republic, Hungary, USA. Please find information about delivery costs below.

Returns

If a product does not meet your expectation for any reason, you can return the product without ifs and buts. To make it even more easy for you, we recommend to use the attached return form and the return stickers free of charge within 30 days of receipt. Or contact our online service anytime , we will try to solve problem ASAP .
