HR 2042TM THK LM Guide
Model HR – Heavy-load Type
The LM blocks can be mounted from the top and
the bottom.
Description
HR 2042TM THK LM Guide , online full stock

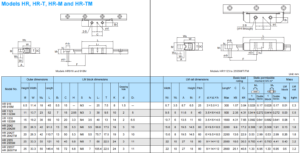

| Model No. | Outer dimensions | LM btodc dimensions | Mass | |||||||||||||
| Height M | Width W | * | Lengti L | Bi | C | H | S | h. | L | T | K | Greasing d | Di | LM block kg | LM ral kg/m | |
| HR 918 HR 918M | 8.5 | 11.4 | 18 | 45 | 5.5 | 15 | — | M3 | — | 25 | 7.5 | 8 | 1.5 | — | 0.01 | 0.3 |
| HR 1123 HR 1123M | 11 | 13.7 | 23 | 52 | 7 | 15 | 2.55 | M3 | 3 | 30 | 9.5 | 10 | 2 | 5 | 0.03 | 0.5 |
| HR 1530 HR 1530M | 15 | 19.2 | 30 | 69 | 10 | 20 | 3.3 | M4 | 3.5 | 40 | 13 | 14 | 2 | 6.5 | 0.08 | 1 |
| HR 2042 HR 2042M | 20 | 26.3 | 42 | 91.6 | 13 | 35 | 5.3 | M6 | 5.5 | 56.6 | 17.5 | 19 | 3 | 10 | 0.13 | 1.8 |
| HR 2042T HR 2042TM | 20 | 26.3 | 42 | 110.7 | 13 | 50 | 5.3 | M6 | 5.5 | 75.7 | 17.5 | 19 | 3 | 10 | 0.26 | 1-8 |
| HR 2555 HR 2555M | 25 | 33.3 | 55 | 121 | 16 | 45 | 6.8 | M8 | 7 | 80 | 22.5 | 24 | 3 | 11 | 0.43 | 3.2 |
| HR 2555T HR 2555TM | 25 | 33.3 | 55 | 146.4 | 16 | 72 | 6.8 | M8 | 7 | 105.4 | 22.5 | 24 | 3 | 11 | 0.5 | 3.2 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of HR 2042TM THK LM Guide ， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
