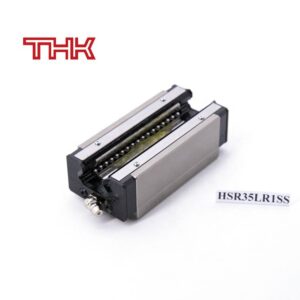

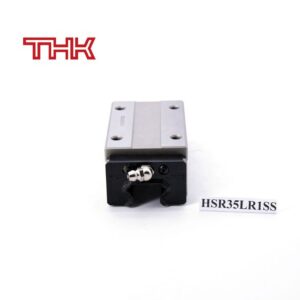

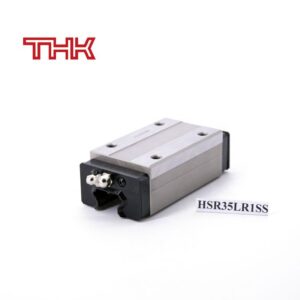

HSR-LR Series CNC machine THK LM Linear Slide Block and Rail Guide Carriage Systems HSR20LR/25LR/30LR/35LR/45R
Linear Guide Description
HSR-LR Series CNC machine THK LM Linear Slide Block and Rail Guide Carriage Systems HSR20LR/25LR/30LR/35LR/45R
The LM Linear Guide (Linear Motion Guide) is our main product, incorporating a part with a linear rolling motion into practical usage. It realizes the development of high-precision, high-rigidity, energy-saving, high-speed machines with long service lives.
Description
Linear Guide Description
HSR-LR Series CNC machine THK LM Linear Slide Block and Rail Guide Carriage Systems HSR20LR/25LR/30LR/35LR/45R
The LM Linear Guide (Linear Motion Guide) is our main product, incorporating a part with a linear rolling motion into practical usage. It realizes the development of high-precision, high-rigidity, energy-saving, high-speed machines with long service lives.
Linear Guide Features: 1.Ideal Four Raceway, Cir cular-Arc Groove, Two Point Contact Structure 2.Superb error-absorbing capability with the DF design 3.Accuracy Averaging Effect by Absorbing Mounting Surface Error 4.Large Permissible Load and High Rigidity 5.Low Friction Coeffificient 6.Wide array of options (QZ lubricator, Laminated contact scraper LaCS, etc.) Linear Guide Major Applications: 1.Surface grinder 2.Electric discharge machine 3.High-speed transfer equipment 4.NC lathe 5.Injection molding machine 6. Woodworking machine 7.Semiconductor manufac turing equipment 8. Inspection equipment 9.Food-related machine 10.Medical equipment 11.CNC machine
Linear Guide Data
HSR-R /HSR-LR
The flange of its LM block has tapper holes.
A global standard size LM Guide in which each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions, enabling the LM Guide to be used in all orientations.
HSR-R has a smaller LM block width (W) and tapped holes. HSR-LR has the same cross-sectional shape, but has a longer overall LM block length (L) and a greater rated load.
Model code | Height | Width | Length | Pitch | LM block Mass | ||
M | W | L | B | C | F | kg | |
HSR15R | 28 | 34 | 56.6 | 26 | 26 | 60 | 0.18 |
HSR20R | 30 | 44 | 74 | 32 | 36 | 60 | 0.25 |
HSR20LR | 30 | 44 | 90 | 32 | 50 | 60 | 0.35 |
HSR25R | 40 | 48 | 83.1 | 35 | 35 | 60 | 0.54 |
HSR25LR | 40 | 48 | 102.2 | 35 | 50 | 60 | 0.67 |
HSR30R | 45 | 60 | 98 | 40 | 40 | 80 | 0.9 |
HSR30LR | 45 | 60 | 120.6 | 40 | 60 | 80 | 1.1 |
HSR35R | 55 | 70 | 109.4 | 50 | 50 | 80 | 1.5 |
HSR35LR | 55 | 70 | 134.8 | 50 | 72 | 80 | 2 |
HSR45R | 70 | 86 | 139 | 60 | 60 | 105 | 2.6 |
HSR45LR | 70 | 86 | 170.8 | 60 | 80 | 105 | 3.1 |
HSR55R | 80 | 100 | 163 | 75 | 75 | 120 | 4.3 |
HSR55LR | 80 | 100 | 201.1 | 75 | 95 | 120 | 5.4 |
