SHS15LV THK BLOCK

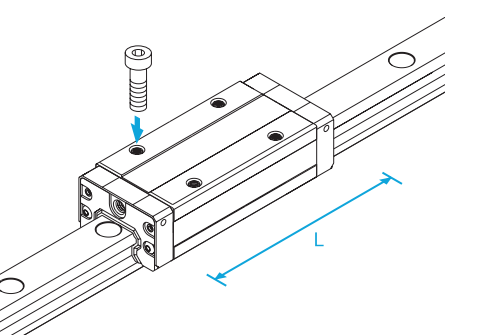

The LM block has the same cross-sectional
shape as model SHS-V, but has a longer overall
LM block length (L) and a greater rated load.
Description
| Model No. | Outer dimensions | LMUock dimensions | Plot hoie for side nipple” | Mas | |||||||||||||
| Height M | Vtfdtfi W | Length L | B | c | Sxf | L. | T | K | N | E | Grease rtPPte | a> | t | Do | LM block kg | LM rail | |
| SHS15V SHS15LV | 24 | 34 | 64.4 79.4 | 26 | 26 34 | M4X4 | 48 63 | 5.9 | 21 | 5.5 | 5.5 | PB1Q21B | 4 | 4 | 3 | 0.19 022 | 1.3 |
| SHS20V SHS20LV | 30 | 44 | 79 98 | 32 | 36 50 | M5X5 | 59 78 | 8 | 25.4 | 6_5 | 12 | B-M6F | 43 | 53 | 3 | 0.35 0.46 | 23 |
| SHS 25V SHS25LV | 36 | 48 | 92 109 | 35 | 35 50 | M6X6.5 | 71 88 | 8 | 302 | 7.5 | 12 | B-M6F | 6 | 5.5 | 3 | 0.54 0.67 | 32 |
| SHS 30V SHS30LV | 42 | 60 | 106 131 | 40 | 40 60 | M8X8 | 80 105 | 8 | 35 | 8 | 12 | &-M6F | 5£ | 6 | 52 | 0.94 1.16 | |
| SHS 35V SHS35LV | 48 | 70 | 122 152 | 50 | 50 72 | M8X10 | 93 123 | 14.7 | 40.5 | 8 | 12 | B-M6F | 6.5 | 5.5 | 52 | 1.4 1.84 | 62 |
| SHS 45 V SHS45LV | 60 | 86 | 140 174 | eo | 60 80 | M10X15 | 106 140 | 14.9 | 51.1 | 10。 | 16 | B-PT1/8 | 8 | 8 | 52 | 2E 3.19 | 10.4 |
| SHS 55V SHS55LV | 70 | 100 | 171 213 | 75 | 75 95 | M12X15 | 131 173 | 19.4 | 57.3 | 11 | 16 | B-PT1/8 | 10 | 8 | 52 | 4.05 523 | 145 |
| SHS 65 V SHS65LV | 90 | 126 | 221 272 | 76 | 70 120 | M16X20 | 175 226 | 195 | 71 | 19 | 16 | B4»T1/8 | 10 | 12 | 52 | 8.41 10.7 | 23.7 |
