NR30LRX THK Linear Guide Rail Slide Block
Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and endplates
incorporated in the LM block allow the balls to circulate. The raceways are cut into deep grooves
that have a radius closer to that of the balls than in the conventional design, using special equipment and an extremely precise cutting technique. This design allows high rigidity, high vibration/impact resistance and high damping capacity, all of which are required for machine tools, thus making
these models capable of bearing ultra-heavy loads
Description
NR30LRX Orginal THK products

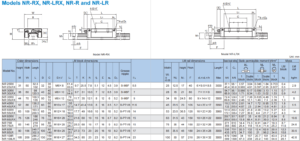

| Model No. | 3313 | H3 | ||||||||||||||
| Width W | Length L | B | C | Sx， | L | T | K | N | 布 | E | eo | Do | Grease nipple | |||
| M | ||||||||||||||||
| NR25RX NR25LRX | 31 | 50 | 82.8 102 | 32 | 35 50 | M6X8 | 61.4 80.6 | 9.7 | 25.5 | 7.8 | 5.1 | 12 | 4.5 | 3.9 | B-M6F | 5.5 |
| NR30RX NR30LKX | 38 | 60 | 98 120.5 | 40 | 40 60 | M8X10 | 72.1 94.6 | 9.7 | 31 | 10.3 | 7 | 12 | 6.5 | 3.9 | B-M6F | 7 |
| NR35RX NR35LRX | 44 | 70 | 109.5 135 | 50 | 50 72 | M8X12 | 79 104.5 | 11.7 | 35 | 12.1 | 8 | 12 | 6 | 5.2 | B-M6F | 9 |
| NR45RX NR45LRX | 52 | 86 | 138.2 171 | 60 | 60 80 | M10X17 | 105 137.8 | 14.7 | 40.4 | 13.9 | 8 | 16 | 8.5 | 5.2 | B-PT1/8 | 11.6 |
| NR55RX NR55LKX | 63 | 100 | 163.3 200.5 | 65 | 75 95 | M12X18 | 123.6 160.8 | 17.7 | 49 | 16.6 | 10 | 16 | 10 | 5.2 | B-PT1/8 | 14 |
| NR65RX NR65LRX | 75 | 126 | 186 246 | 76 | 70 110 | M16X20 | 143.6 203.6 | 21.6 | 60 | 19 | 15 | 16 | 8.7 | 8.2 | B-PT1/8 | 15 |
| NR75R NR75LR | 83 | 145 | 218 274 | 95 | 80 130 | M18X25 | 170.2 226.2 | 25.3 | 68 | 18 | 17 | 16 | 9 | 8.2 | B-PT1/8 | 15 |
| NR85R NR85LR | 90 | 156 | 246.7 302.8 | 100 | 80 140 | M18X25 | 194.9 251 | 27.3 | 73 | 20 | 20 | 16 | 10 | 8.2 | B-PT1/8 | 17 |
| NR 100R NR 100LR | 105 | 200 | 286.2 326.2 | 130 | 150 200 | M18X27 | 223.4 263.4 | 34.3 | 85 | 23 | 23 | 10 | 12 | 8.2 | B-PT1/4 | 20 |
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…CD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
There are many types of THK products,we can not upload all of them at present.
If you have any demands ，
feel free to contact us online or leave a message .
