NRS75LA THK Linear Guide Rail Slide Block
Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and endplates
incorporated in the LM block allow the balls to circulate. The raceways are cut into deep grooves
that have a radius closer to that of the balls than in the conventional design, using special equipment and an extremely precise cutting technique. This design allows high rigidity, high vibration/impact resistance and high damping capacity, all of which are required for machine tools, thus making
these models capable of bearing ultra-heavy loads
Description
NRS75LA Orginal THK products

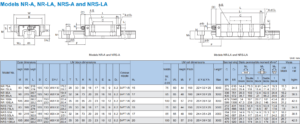

| Model No. | Outer dimensions | LM block dimensions | h3 | ||||||||||||||
| Height M | Width W | Length L | B | C | SXt | Li | T | K | N | Io | E | eo | Do | Grease nipple | |||
| NR75A NR75LA | 83 | 195 | 218 274 | 165 | 130 | M18X30 | 170.2 226.2 | 28 | 30 | 68 | 18 | 17 | 16 | 9 | 8.2 | B-PT1/8 | 15 |
| NR85A NR85LA | 90 | 215 | 246.7 302.8 | 185 | 140 | M20X34 | 194.9 251 | 32 | 34 | 73 | 20 | 20 | 16 | 10 | 8.2 | B-PT1/8 | 17 |
| NR100A NR100LA | 105 | 260 | 286.2 326.2 | 220 | 150 200 | M20X38 | 223.4 263.4 | 35 | 38 | 85 | 23 | 23 | 10 | 12 | 8.2 | B-PT1/4 | 20 |
| NRS 75A NRS 75LA | 83 | 195 | 218 274 | 165 | 130 | M18X30 | 170.2 226.2 | 28 | 30 | 68 | 18 | 17 | 16 | 9 | 8.2 | B-PT1/8 | 15 |
| NRS 85A NRS 85LA | 90 | 215 | 246.7 302.8 | 185 | 140 | M20X34 | 194.9 251 | 32 | 34 | 73 | 20 | 20 | 16 | 10 | 8.2 | B-PT1/8 | 17 |
| NRS 100 A NRS 100LA | 105 | 260 | 286.2 326.2 | 220 | 150 200 | M20X38 | 223.4 263.4 | 35 | 38 | 85 | 23 | 23 | 10 | 12 | 8.2 | B-PT1/4 | 20 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands ，
feel free to contact us online or leave a message .
