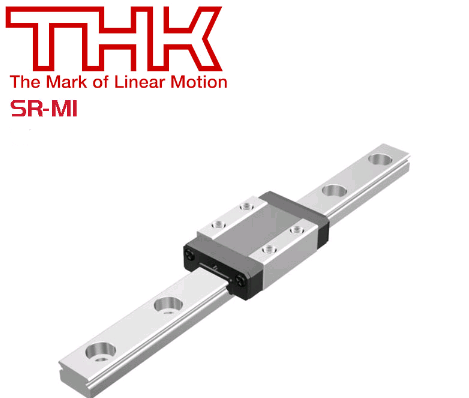

SR15M1W THK Linear Motion Guide Supply

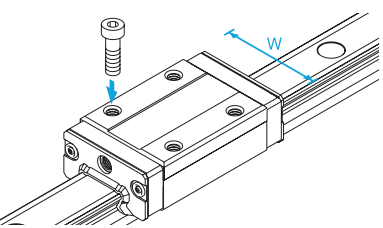

With this type, the LM block has a smaller width
(W) and tapped holes.
Description
SR15M1W THK Linear Motion Guide Supply

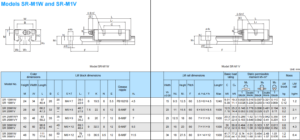

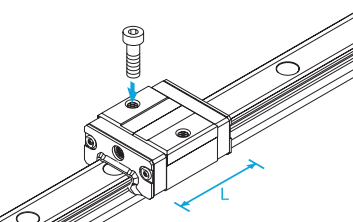

| Model No. | Outer dimensions | LM block dimensions | H3 | Mass | |||||||||||
| Height M | Width W | Length L | B | C | Sxf | Li | T | K | N | E | Grease nipple | LM block kg | LM rail kg/m | ||
| SR 15M1W SR15M1V | 24 | 34 | 57 40.4 | 26 | 26 | M4X7 | 39.5 22.9 | 6 | 19.5 | 6 | 5.5 | PB1021B | 4.5 | 0.2 0.12 | 1.2 |
| SR20M1W SR20M1V | 28 | 42 | 66.2 47.3 | 32 | 32 | M5X8 | 46.7 27.8 | 7.5 | 22 | 6 | 12 | B-M6F | 6 | 0.3 0.2 | 2.1 |
| SR 25M1WY SR25M1VY | 33 | 48 | 83 59.2 | 35 | 35 | M6X9 | 59 35.2 | 8 | 26 | 7 | 12 | B-M6F | 7 | 0.4 0.3 | 2.7 |
| SR 30M1W SR 30M1V | 42 | 60 | 96.8 67.9 | 40 | 40 | M8X12 | 69.3 40.4 | 9 | 32.5 | 8 | 12 | B-M6F | 9.5 | 0.8 0.5 | 4.3 |
| SR35M1W SR 35M1V | 48 | 70 | 111 77.6 | 50 | 50 | M8X12 | 79 45.7 | 13 | 36.5 | 8.5 | 12 | B-M6F | 11.5 | 1.2 0.8 | 6.4 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands ， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
