SVR35RH THK LM Guide
The dimensions are almost the same as that of LM Guide models SHS and HSR, and the LM block has tapped holes.
Description
SVR35RH Orginal THK products

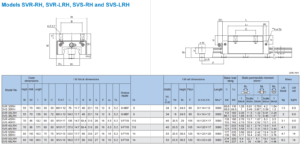

| Model No. | Outerdimensions | LM block dimensions | H | |||||||||||||
| HeightM | WdthW | LengthL | B | c | S×l | La | T | K | N | f | E | eo | D | Greasenipple | ||
| SVR35RH SVS35RH | 55 | 70 | 109.5 | 50 | 50 | M8×12 | 79 | 11.7 | 46 | 23.1 | 19 | 12 | 6 | 5.2 | B-M6F | 9 |
| SVR35LRH SVS35LRH | 55 | 70 | 135 | 50 | 72 | M8×12 | 104.5 | 11.7 | 46 | 23.1 | 19 | 12 | 6 | 5.2 | B-M6F | 9 |
| SVR45RH SVS45RH | 70 | 86 | 138.2 | 60 | 60 | M10×17 | 105 | 14.7 | 58.4 | 31.9 | 26 | 16 | 8.5 | 5.2 | B-PT1/8 | 11.6 |
| SVR45LRH SVS45LRH | 70 | 86 | 171 | 60 | 80 | M10×17 | 137.8 | 14.7 | 58.4 | 31.9 | 26 | 16 | 8.5 | 5.2 | B-PT1/8 | 11.6 |
| SVR55RH SVS55RH | 80 | 100 | 163.3 | 75 | 75 | M12×18 | 123.6 | 17.7 | 66 | 33.6 | 27 | 16 | 10 | 5.2 | B-PT1/8 | 14 |
| SVR55LRH SVS55LRH | 80 | 100 | 200.5 | 75 | 95 | M12×18 | 160.8 | 17.7 | 66 | 33.6 | 27 | 16 | 10 | 5.2 | B-PT1/8 | 14 |
