THK Ball Screw Model BF25 Square Type Support Unit on the Supported Side
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
Description
THK Ball Screw Model BF25 Square Type Support Unit on the Supported Side . online supply .
Welcome inquiry .

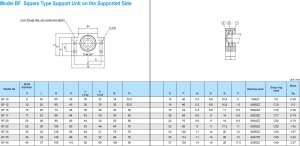

| Model No. | Shaft diameter d |
L |
B |
H | b ±0.02 | hi ±0.02 |
Bi |
₁ |
E |
P |
₃ |
₁ |
dz |
h | Bearing used | Snap ring used | Mass kg | |
| BF 10 | 8 | 20 | 60 | 39 | 30 | 22 | 34 | 32.5 | 15 | 46 | 5.5 | 6.6 | 10.8 | 5 | 608ZZ | C8 | 0.29 | |
| BF 12 | 10 | 20 | 60 | 43 | 30 | 25 | 35 | 32.5 | 18 | 46 | 5.5 | 6.6 | 10.8 | 1.5 | 6000ZZ | C10 | 0.3 | |
| BF 15 | 15 | 20 | 70 | 48 | 35 | 28 | 40 | 38 | 18 | 54 | 5.5 | 6.6 | 11 | 6.5 | 6002ZZ | C15 | 0.38 | |
| BF 17 | 17 | 23 | 86 | 64 | 43 | 39 | 50 | 55 | 28 | 68 | 6.6 | 9 | 14 | 8.5 | 6203ZZ | C17 | 0.74 | |
| BF 20 | 20 | 26 | 88 | 60 | 44 | 34 | 52 | 50 | 22 | 70 | 6.6 | 9 | 14 | 8.5 | 6004ZZ | C20 | 0.76 | |
| BF 25 | 25 | 30 | 106 | 80 | 53 | 48 | 64 | 70 | 33 | 85 | 9 | 11 | 17.5 | 11 | 6205ZZ | C25 | 1.42 | |
| BF 30 | 30 | 32 | 128 | 89 | 64 | 51 | 76 | 78 | 33 | 102 | 11 | 14 | 20 | 13 | 6206ZZ | C30 | 1.97 | |
| BF 35 | 35 | 32 | 140 | 96 | 70 | 52 | 88 | 79 | 35 | 114 | 11 | 14 | 20 | 13 | 6207ZZ | C35 | 2.22 | |
| BF 40 | 40 | 37 | 160 | 110 | 80 | 60 | 100 | 90 | 37 | 130 | 14 | 18 | 26 | 17.5 | 6208ZZ | C40 | 3.27 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of BF25， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
