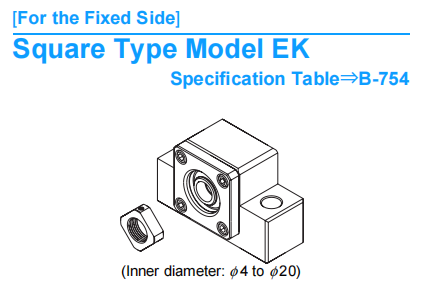

THK Ball Screw Model EK20 Square Type Support Unit on the Fixed Side
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
THK Ball Screw Model EK20 Square Type Support Unit on the Fixed Side. online supply .
Welcome inquiry .

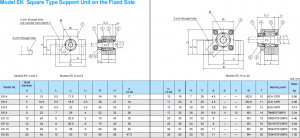

Model No. | Shaft diameter d | L | Li | Lz | L3 | B | H | b ±0.02 | hi ±0.02 | B1 | Hi | P | di | ₂ | h | M | T | Bearing used | Mass kg | |
EK 4 | 4 | 15 | 5.5 | 17.5 | 3 | 34 | 19 | 17 | 10 | 18 | 7 | 26 | 4.5 | — | M2.6 | 10 | AC4-12P5 | 0.06 | ||
EK 5 | 5 | 16.5 | 5.5 | 18.5 | 3.5 | 36 | 21 | 18 | 11 | 20 | 8 | 28 | 4.5 | —— | —— | M2.6 | 11 | AC5-14P5 | 0.08 | |
EK6 | 6 | 20 | 5.5 | 22 | 3.5 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 | M3 | 12 | AC6-16P5 | 0.14 | |
EK 8 | 8 | 23 | 7 | 26 | 4 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 | M3 | 14 | 79M8DFGMP5 | 0.24 | |
EK 10 | 10 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | —— | — | M3 | 16 | 7000HTDFGMP5 | 0.46 | |
EK 12 | 12 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | M3 | 19 | 7001HTDFGMP5 | 0.44 | |||
EK 15 | 15 | 25 | 6 | 36 | 5 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 11 | M3 | 22 | 7002HTDFGMP5 | 0.55 | |||
EK 20 | 20 | 42 | 10 | 50 | 10 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | — | M4 | 30 | 7204HTDFGMP5 | 1.35 |
