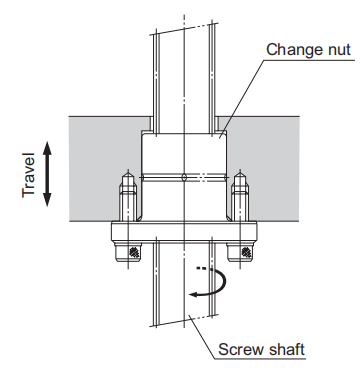

THK Change Nut Model DCMB 8T
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
Description
THK Change Nut Model DCMB 8T , online supply .
Welcome inquiry .
| Change Nut Model No. (note) | Outer dimensions | Change nut dimensions | Mass | |||||||||
| Outer diameter | Length L | Flange diameter D1 | H | B | PCD | r | F | d | Change mut
g | screw shatt kg/m | ||
| D | Tolerance h9 | |||||||||||
| DCMB 8(note) | 15 | 0 -0.1 | 16 | 28 | 4 | 3.4 | 21 | 0.8 | 5 | 0.36 | ||
| DCMB 12T(note) | 20 | 25 | 36 | 5 | 4.5 | 27 | 1 | 10 | 0.82 | |||
| DCMA 15T DCMB 15T | 22 | 0 -0.052 | 15 | 44 | 6 | 5.4 | 31 | 1.5 | 4.5 | 1.5 | 60 | 1.2 |
| 30 | 85 | |||||||||||
| DCMA 17T DCMB 17T | 28 | 15 | 51 | 7 | 6.6 | 38 | 1.5 | 4.5 | 1.5 | 95 | 1.5 | |
| 35 | 140 | |||||||||||
| DCMA 20T DCMB 20T | 32 | 0 -0.062 | 20 | 56 | 7 | 6.6 | 42 | 1.5 | 6.5 | 2 | 135 | 2.6 |
| 40 | 210 | |||||||||||
| DCMA 25T DCMB 25T | 36 | 25 | 61 | 8 | 6.6 | 47 | 2 | 8.5 | 2 | 175 | 3.3 | |
| 50 | 280 | |||||||||||
| DCMA 30T DCMB 30T | 44 | 28 | 76 | 10 | 9 | 58 | 2 | 9 | 2 | 290 | 5.3 | |
| 56 | 465 | |||||||||||
| DCMA 35T DCMB 35T | 52 |
0 -0.074 | 30 | 84 | 10 | 9 | 66 | 2.5 | 10 | 3 | 425 | 5.8 |
| 60 | 670 | |||||||||||
| DCMA 40 DCMB 40 | 58 | 35 | 98 | 12 | 11 | 76 | 2.5 | 11.5 | 3 | 715 | 9 | |
| 70 | 1065 | |||||||||||
| DCMA 45 DCMB 45 | 64 | 37 | 104 | 12 | 11 | 80 | 2.5 | 12.5 | 3 | 820 | 10.6 | |
| 75 | 1270 | |||||||||||
| DCMA 50 DCMB 50 | 68 | 40 | 109 | 12 | 11 | 85 | 2.5 | 14 | 3 | 925 | 14 | |
| 80 | 1375 | |||||||||||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of DCMB 8T ， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
