THK LINK BALL MODEL RBL-5D

[Material]

Holder : High strength zinc alloy

Ball shank : Lightly Carburized Carbon Steel Ball:

650 Hv or higher Shank S35C Chromate treatment

Boot : NBR special synthetic rubber

[Lubrication]

Lithium soap group grease No. 2 is contained in the boot.

[Identification of Left-hand Thread]

If the female threading is left-hand, symbol “L” is added.

The actual product is marked with symbol “L” on the wrench flat.

INQUIRE NOW

"*" indicates required fields

Category: THK Tags: BL-14D, RBL-5D
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

THK LINK BALL MODEL RBL-5D , Welcome inquiry .

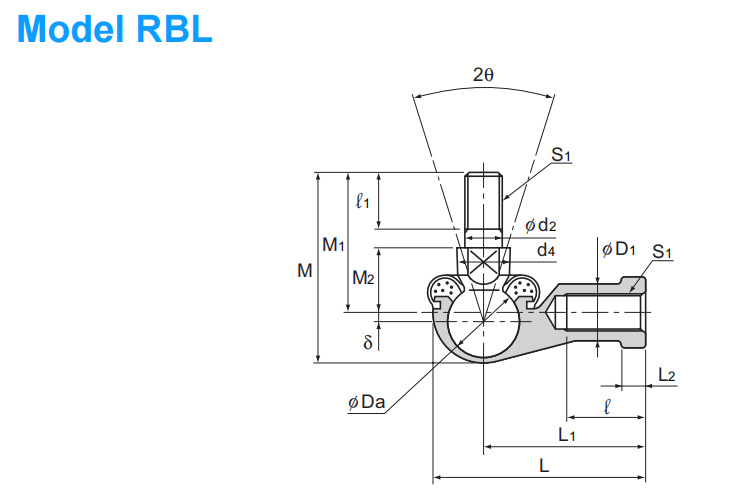

Model No.Outer dimensionsThreaded
S1 JIS Class 2
Holder dimensionsMass
g
LengthLDiameterDHeightML1L2D1D2W
0-0.3
RBL 5D351629M5×0.827414911924
RBL 6D401935.5M6×13051410131137
RBL 8D482342.5M8×1.253651712.5161467
RBL 10D572750.5M10×1.25436.521151917110
RBL 10BD572756.5M10×1.5436.521151917113
RBL 12D663157.5M12×1.25506.52517.52219165
RBL 12BD663164.5M12×1.75506.52517.52219170
RBL 14D753573.5M14×1.557826202522255
RBL 14BD753579.5M14×257826202522260
RBL 16D843979.5M16×1.564832222722335
RBL 16BD843985.5M16×264832222722340
RBL 18D934490M18×1.5711034253127465
RBL 20D994490M20×1.577103527.53430540
RBL 22D1095095M22×1.5841241303732715
